Tutorials_scCAMEL-SWAPLINE_SensoryNeurons_Training-SharmaMouse_Predict_ZeiselMouse

Original Article: Single cell transcriptomics of primate sensory neurons identifies cell types associated with chronic pain,”Nat Commun”, 2021

Original Article: Single-Soma Deep RNA sequencing of Human DRG Neurons Reveals Novel Molecular and Cellular Mechanisms Underlying Somatosensation

Package: scCAMEL-SWAPLINE.v1

Research Group: Ernfors lab

Link of the datasets: Mouse sensory neurons, Dataset references: Sharma, et al., Zeisel, et al.

Training

[1]:

import datetime
today=f"{datetime.datetime.now():%Y-%m-%d}"
today

[1]:

'2023-05-23'

[2]:

import torch
import torch.nn as nn
from torch.autograd import Variable
import torch.utils.data as Data
import torchvision
import matplotlib.pyplot as plt
from mpl_toolkits.mplot3d import Axes3D
import torch.utils.data as data_utils
from matplotlib import cm
import numpy as np
import pandas as pd
import pickle as pickle
from scipy.spatial.distance import cdist, pdist, squareform
import pandas as pd
from sklearn.linear_model import LogisticRegression, LogisticRegressionCV
from sklearn.model_selection import StratifiedShuffleSplit
from collections import defaultdict
from sklearn import preprocessing
import matplotlib.patches as mpatches
import torch.nn.functional as F
import math
#import gpytorch

import urllib.request
import os.path
from scipy.io import loadmat
from math import floor
import anndata
# Make plots inline
%pylab inline

%pylab is deprecated, use %matplotlib inline and import the required libraries.
Populating the interactive namespace from numpy and matplotlib

/home/huyiz/anaconda3/envs/newpy38/lib/python3.8/site-packages/IPython/core/magics/pylab.py:162: UserWarning: pylab import has clobbered these variables: ['floor']
`%matplotlib` prevents importing * from pylab and numpy
  warn("pylab import has clobbered these variables: %s"  % clobbered +

[3]:

torch.manual_seed(1)    # reproducible

[3]:

<torch._C.Generator at 0x7f7df12cde90>

[4]:

import scCAMEL as scm
from scCAMEL import CamelPrefiltering
from scCAMEL import CamelSwapline
from scCAMEL import CamelEvo

/home/huyiz/anaconda3/envs/newpy38/lib/python3.8/site-packages/scCAMEL/CamelSwapline.py:637: FutureWarning: The default dtype for empty Series will be 'object' instead of 'float64' in a future version. Specify a dtype explicitly to silence this warning.
  def addcolor(datax,clustername="Cluster", colorcode="color", predef=pd.Series()):

# Read data

[5]:

cd .

/mnt/f/Dropbox/data/proj/PE_HYZ/IpythonRecord/Monkey_DRG

[6]:

cd /mnt/f/Yizhou_KI_OneCloud/OneDrive - Karolinska Institutet/Datasets_Template/Datasets

/mnt/f/Yizhou_KI_OneCloud/OneDrive - Karolinska Institutet/Datasets_Template/Datasets

[7]:

screfall=anndata.read("SensoryNeurons_Zeisel-Sharma.h5ad")
screfall

[7]:

AnnData object with n_obs × n_vars = 12635 × 15677
    obs: 'Cluster', 'mtrain_index', 'sample', 'species', 'batch', 'color'
    uns: 'refcolor_dict'

[8]:

#if the matrix is sparse matrix
#screfall.X=screfall.X.todense()

[9]:

set(screfall.obs["Cluster"])

[9]:

{'NF1',
 'NF2_3',
 'NF4',
 'NP1',
 'NP2',
 'NP3',
 'PEP1_PSPEP2',
 'PEP1_PSPEP3',
 'PEP1_PSPEP4',
 'PEP1_PSPEP5',
 'PEP2',
 'Sharma_Abeta-Field',
 'Sharma_Abeta-RA-LTMR',
 'Sharma_Adelta-LTMR',
 'Sharma_C-LTMR',
 'Sharma_CGRP-Alpha',
 'Sharma_CGRP-Beta',
 'Sharma_CGRP-Epsilion',
 'Sharma_CGRP-Eta',
 'Sharma_CGRP-Gamma',
 'Sharma_CGRP-Theta',
 'Sharma_CGRP-Zeta',
 'Sharma_Nonpeptidergic nociceptors',
 'Sharma_Proprioceptors',
 'Sharma_Sst',
 'Sharma_TrpM8',
 'TRPM8',
 'Th'}

[10]:

scref=screfall[screfall.obs["batch"]=="0"]

[11]:

set(scref.obs["Cluster"])

[11]:

{'Sharma_Abeta-Field',
 'Sharma_Abeta-RA-LTMR',
 'Sharma_Adelta-LTMR',
 'Sharma_C-LTMR',
 'Sharma_CGRP-Alpha',
 'Sharma_CGRP-Beta',
 'Sharma_CGRP-Epsilion',
 'Sharma_CGRP-Eta',
 'Sharma_CGRP-Gamma',
 'Sharma_CGRP-Theta',
 'Sharma_CGRP-Zeta',
 'Sharma_Nonpeptidergic nociceptors',
 'Sharma_Proprioceptors',
 'Sharma_Sst',
 'Sharma_TrpM8'}

[12]:

scref.obs.groupby(["Cluster"]).count()

[12]:

	mtrain_index	sample	species	batch	color
Cluster
Sharma_Abeta-Field	257	257	257	257	257
Sharma_Abeta-RA-LTMR	273	273	273	273	273
Sharma_Adelta-LTMR	182	182	182	182	182
Sharma_C-LTMR	1554	1554	1554	1554	1554
Sharma_CGRP-Alpha	1440	1440	1440	1440	1440
Sharma_CGRP-Beta	135	135	135	135	135
Sharma_CGRP-Epsilion	850	850	850	850	850
Sharma_CGRP-Eta	270	270	270	270	270
Sharma_CGRP-Gamma	705	705	705	705	705
Sharma_CGRP-Theta	758	758	758	758	758
Sharma_CGRP-Zeta	333	333	333	333	333
Sharma_Nonpeptidergic nociceptors	2817	2817	2817	2817	2817
Sharma_Proprioceptors	234	234	234	234	234
Sharma_Sst	761	761	761	761	761
Sharma_TrpM8	488	488	488	488	488

Prefiltering_and_SelectFeatures

[13]:

path='/mnt/f/Dropbox/data/proj/PE_HYZ/PublicDataSet/'
filename='PANTHER_cell_cycle_genes.txt'
#dfpfc2= prefilteringTest.prefilter(df_f=dfpfc,filename=filename, path=path)
scref= scm.CamelPrefiltering.prefilter(datax=scref,filename=filename, path=path)

CamelRunning_Prefilter......

/home/huyiz/anaconda3/envs/newpy38/lib/python3.8/site-packages/scCAMEL/CamelPrefiltering.py:70: ImplicitModificationWarning: Trying to modify attribute `.var` of view, initializing view as actual.
  datax.var["Filter1"]=ftlist

CamelRunning_Prefilter......Finished

[14]:

scref=scm.CamelPrefiltering.DataScaling(scref)

[15]:

dfdev2=pd.DataFrame(scref.X,index=scref.obs.index,columns=scref.var.index).T
dfdev2=dfdev2.loc[scref.var['Filter1']==True]
dfdev2.shape

[15]:

(12240, 11057)

[16]:

markerlist=scm.CamelSwapline.enrichmentscoreBETA(dfpfcclus=scref.obs["Cluster"], df_dev=dfdev2, fc=3, pvalcutoff=0.1, shortcut=True)

Camel...Running: clusteringValue1...
Camel...Running: clusteringValue2...
2448
[Processing15
Camel...Running: CrossChecking...
-0%--6%--13%--20%--26%--33%--40%--46%--53%--60%--66%--73%--80%--86%--93%-Camel...Running: output genelist...

[17]:

markerlist2=list(set(markerlist))
len(markerlist2)

[17]:

[18]:

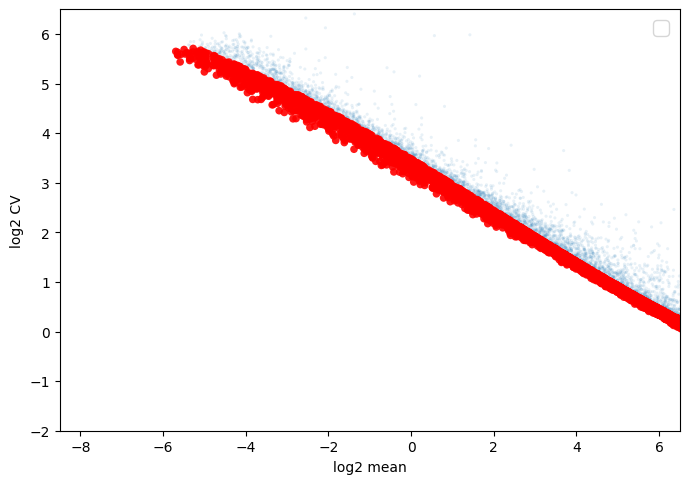

scref, score,  thrs, ax=scm.CamelPrefiltering.MVgenes(datax=scref,wt=3, markerlist=markerlist2,
                                                  plotfig=True, Xlow=-8.5, Xhigh=6.5, Ylow=-2, Yhigh=6.5,alphaValue=0.9, sValue=30,
           fig_args={'figsize': (8, 8), 'facecolor': 'white', 'edgecolor': 'white'})

CamelRunning_MVgenes......

No artists with labels found to put in legend.  Note that artists whose label start with an underscore are ignored when legend() is called with no argument.

CamelRunning_MVgenes......Finished

../_images/Tutorials_scCAMEL_SWAPLINEv2_Tutorials_scCAMEL-SWAPLINE_SensoryNeurons_26_3.png

[19]:

len(scref.var.index[scref.var["MVgene"]])

[19]:

[20]:

scref2=scref

[21]:

########################################################
########################################################
#remeber to change the file path in tftable
########################################################
########################################################
scref =scm.CamelPrefiltering.MVgene_Scaling(datax=scref2,score=score,
                                                                   thrs=thrs, TPTT=100000,     mprotogruop=scref.obs["Cluster"].values,commongene=None,
                                                                                              sharedMVgenes=None,std_scaling=True,
    tftable="/mnt/f/Dropbox/data/proj/PE_HYZ/PublicDataSet/FantomTF2CLUSTER_human_official.txt", learninggroup="train")

CamelRunning---GenesScaling......

/home/huyiz/anaconda3/envs/newpy38/lib/python3.8/site-packages/scCAMEL/CamelPrefiltering.py:791: FutureWarning: In a future version of pandas all arguments of DataFrame.dropna will be keyword-only.
  scalepfc = dfpfc.div(dfpfc.std(1), axis=0).dropna(0)
/home/huyiz/anaconda3/envs/newpy38/lib/python3.8/site-packages/scCAMEL/CamelPrefiltering.py:792: FutureWarning: In a future version of pandas all arguments of DataFrame.dropna will be keyword-only.
  scalepfc = dfpfc.astype(float).dropna(0)
/home/huyiz/anaconda3/envs/newpy38/lib/python3.8/site-packages/scCAMEL/CamelPrefiltering.py:794: FutureWarning: In a future version of pandas all arguments of DataFrame.dropna will be keyword-only.
  scalepfc = scalepfc.dropna(0)
/home/huyiz/anaconda3/envs/newpy38/lib/python3.8/site-packages/scCAMEL/CamelPrefiltering.py:795: FutureWarning: Passing a set as an indexer is deprecated and will raise in a future version. Use a list instead.
  dfpfc_dev = scalepfc.loc[set(scalepfc.index) & set(sharedMVgenes)].dropna()

CamelRunning---TrainingGenesScaling......Finished

[22]:

scref

[22]:

AnnData object with n_obs × n_vars = 11057 × 15677
    obs: 'Cluster', 'mtrain_index', 'sample', 'species', 'batch', 'color'
    var: 'Filter1', 'MVgene', 'RefGeneList'
    uns: 'refcolor_dict', 'train_set_gene', 'mclasses_names'
    obsm: 'train_set_values'

Neural-Network learning

[23]:

net=scm.CamelPrefiltering.NNclassifer(
   datax=scref,
    epochNum=100,
    learningRate=0.0075,
    verbose=0,
    optimizerMmentum=0.8,
    dropout=0.3,
    #imizer__nesterov=True,
    )

CamelRunning---NNclasffier_in_cpu.......
CamelRunning---NNclasffier_in_cpu.......Finished

Accuracy plot, the overall clustering accuracy is ~85%

[24]:

ax=scm.CamelPrefiltering.AccuracyPlot( nnModel=net, accCutoff=0.8,
                 Xlow=-1, Ylow=0.0, Yhigh=1,
               )

../_images/Tutorials_scCAMEL_SWAPLINEv2_Tutorials_scCAMEL-SWAPLINE_SensoryNeurons_34_0.png

Make predition and visualization in Radar plot

[23]:

net=scm.CamelPrefiltering.NNclassifer(
   datax=scref,
    epochNum=30,
    learningRate=0.0075,
    verbose=0,
    optimizerMmentum=0.8,
    dropout=0.3,
    #imizer__nesterov=True,
    )

CamelRunning---NNclasffier_in_cpu.......
CamelRunning---NNclasffier_in_cpu.......Finished

[24]:

scref

[24]:

AnnData object with n_obs × n_vars = 11057 × 15677
    obs: 'Cluster', 'mtrain_index', 'sample', 'species', 'batch', 'color'
    var: 'Filter1', 'MVgene', 'RefGeneList'
    uns: 'refcolor_dict', 'train_set_gene', 'mclasses_names'
    obsm: 'train_set_values'

[25]:

#if color is not defined: scref.obs[ 'color']
#scref=scm.CamelSwapline.addcolor(datax=scref,clustername="Cluster", colorcode="color")

[26]:

scref.uns["mwanted_order"] =list(sort(list(set(scref.obs["Cluster"]))))

[27]:

cd .

/mnt/f/Yizhou_KI_OneCloud/OneDrive - Karolinska Institutet/Datasets_Template/Datasets

[28]:

#radar  plot
scref=scm.CamelSwapline.prediction(datax=scref, mcolor_dict=scref.uns["refcolor_dict"] ,net=net,learninggroup="train", radarplot=True,fontsizeValue=18,
                       ncolnm=3, bbValue=(1.2, 1.05)  )
#plt.savefig("upload_%s_RadarPlot_MacaqueRef_Merged_cluster.pdf"%today,bbox_inches='tight')

../_images/Tutorials_scCAMEL_SWAPLINEv2_Tutorials_scCAMEL-SWAPLINE_SensoryNeurons_41_0.png

[29]:

scref

[29]:

AnnData object with n_obs × n_vars = 11057 × 15677
    obs: 'Cluster', 'mtrain_index', 'sample', 'species', 'batch', 'color'
    var: 'Filter1', 'MVgene', 'RefGeneList'
    uns: 'refcolor_dict', 'train_set_gene', 'mclasses_names', 'mwanted_order', 'Celltype_Score_RefCellType', 'Celltype_OrderNumber'
    obsm: 'train_set_values', 'Celltype_Score', 'CelltypeScoreCoordinates'

dfpfcclus = scref.obs[[“mtrain_index”,”Cluster”]].T dfpfcclus

[ ]:

#######################
#######################

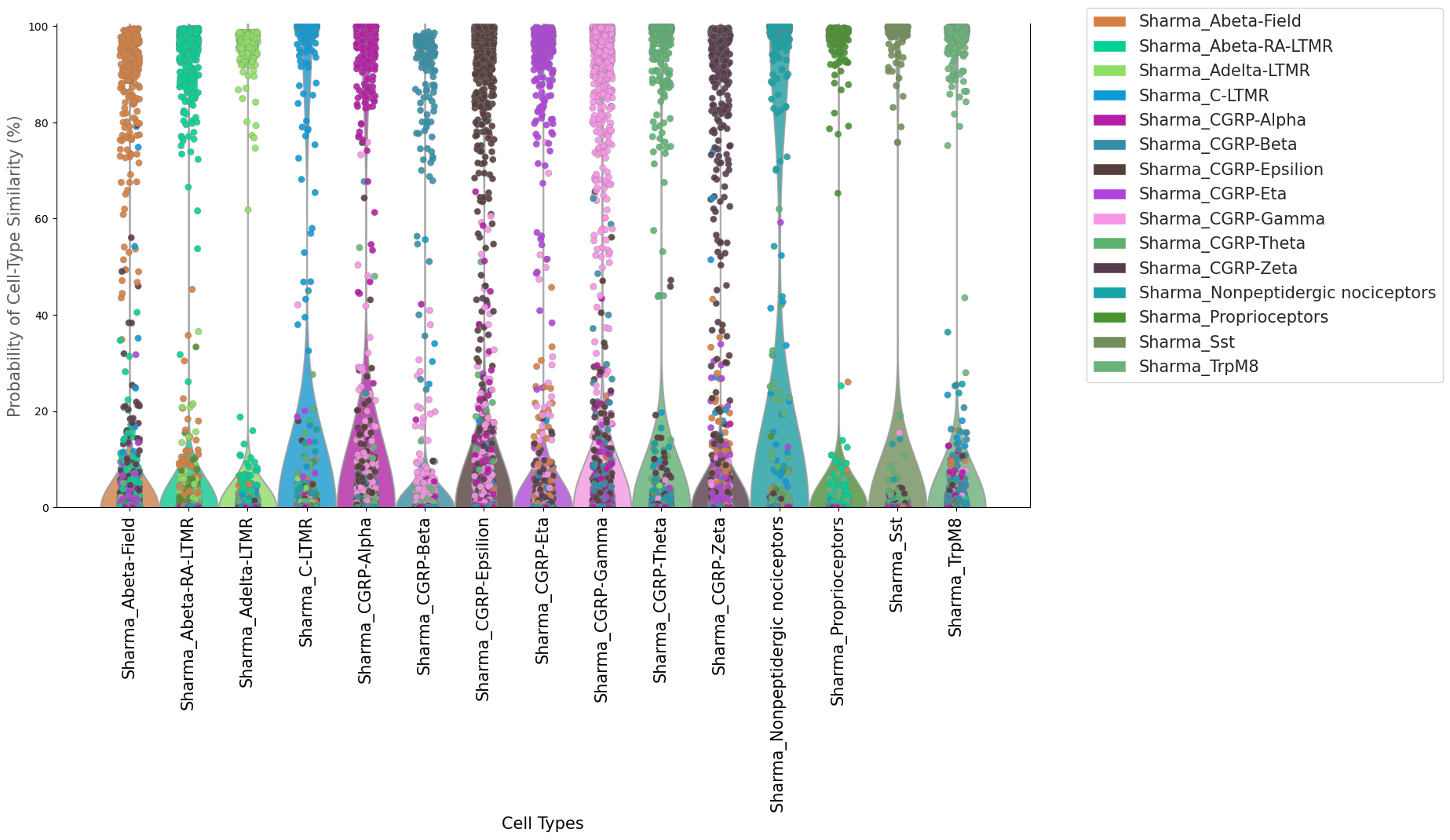

#Multiplot_Violin
# each column along X axis represents a cell type, and the y-axis represents the cell-type probability
# each column along X axis contain all cells in the training, shown as dots with different colors
# in the perfect condition， only the cells of the same cell-type column will reach to the maxium (100%) probability, all other cells will be 0 probability
#however, in each cell-type column, some cells from other cell types may exhibit high probability, two reasons: 1. they may shared some features with this---
# cell-type, and these features drag them to the current cell-type; 2. they are inproperly classified due to many factors, such as low quality data, different clustering algorithm.....
#######################
#######################

[31]:

fig=scm.CamelSwapline.ProbMultiPlot( datax=scref, mcolor_dict=scref.uns["refcolor_dict"] )

<Figure size 2500x1000 with 0 Axes>

../_images/Tutorials_scCAMEL_SWAPLINEv2_Tutorials_scCAMEL-SWAPLINE_SensoryNeurons_45_1.png

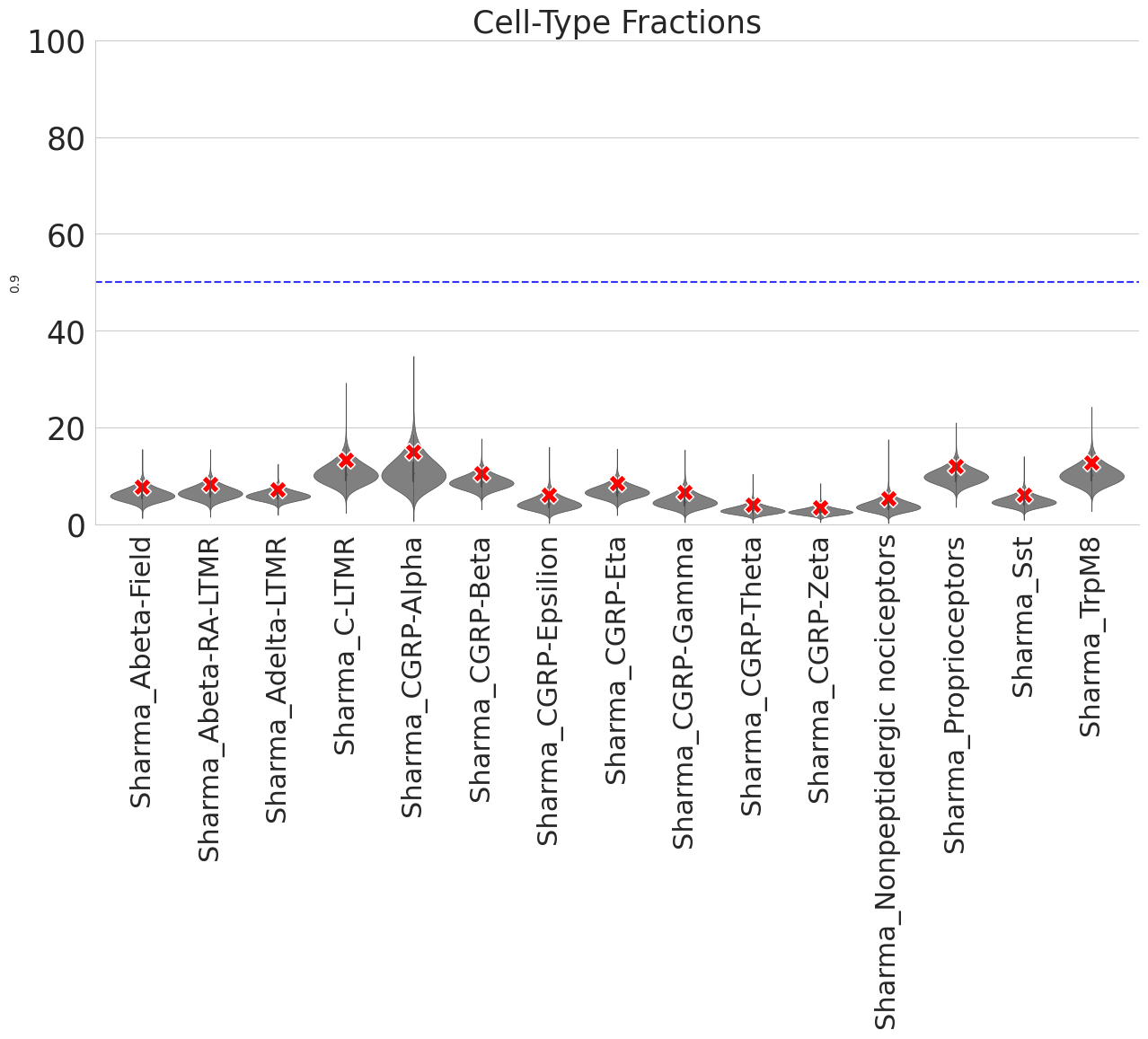

permutation control

[32]:

## the whole data matrix is randomized, the red X represents 95% conficence of each cell-type

[33]:

dftest0, ratiodf=scm.CamelSwapline.permutationTest(datax=scref,net=net,num=50, plotshow=True)

<Figure size 640x480 with 0 Axes>

../_images/Tutorials_scCAMEL_SWAPLINEv2_Tutorials_scCAMEL-SWAPLINE_SensoryNeurons_48_1.png

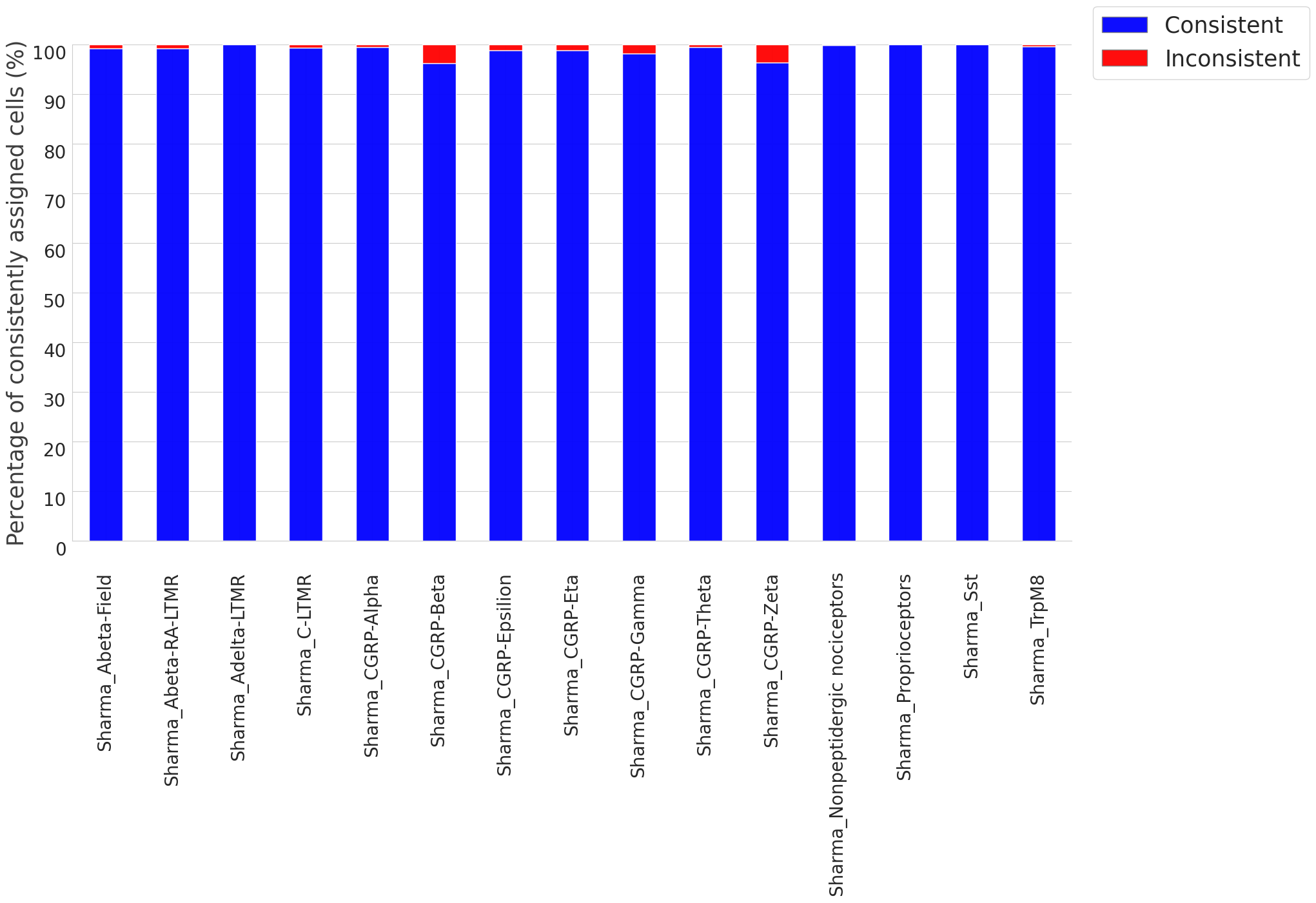

Cluster consistency and accuracy

[ ]:

######
# The script uses the original, defined cell type as a reference to compare with the predicted cell type of each cell.
# If the predicted cell type matches the original defined cell type, the cell is deemed to be 'consistently assigned'.
# Conversely, if the predicted cell type does not match, the cell is considered 'inconsistently assigned', indicating possible incorrect clustering.
# Output File: This contains the ID of inconsistent cells, the originally defined cell type, and the predicted cell type.
# Output Plot: This displays the ratio (%) of cells that are correctly (consistently) and incorrectly (inconsistently) assigned cell types.

######

[35]:

len(set(scref.obs.index))

[35]:

[36]:

scref

[36]:

AnnData object with n_obs × n_vars = 11057 × 15677
    obs: 'Cluster', 'mtrain_index', 'sample', 'species', 'batch', 'color'
    var: 'Filter1', 'MVgene', 'RefGeneList'
    uns: 'refcolor_dict', 'train_set_gene', 'mclasses_names', 'mwanted_order', 'Celltype_Score_RefCellType', 'Celltype_OrderNumber'
    obsm: 'train_set_values', 'Celltype_Score', 'CelltypeScoreCoordinates'

[37]:

cd .

/mnt/f/Yizhou_KI_OneCloud/OneDrive - Karolinska Institutet/Datasets_Template/Datasets

[38]:

scref=scm.CamelSwapline.ConsistantAssign(datax=scref,dfsig=dftest0,outputfilepath="upload_%s_Sharma_Ref_InconsistantCells.csv"%today,
                                         outputPlot=True )

/home/huyiz/anaconda3/envs/newpy38/lib/python3.8/site-packages/scCAMEL/CamelSwapline.py:466: FutureWarning: The frame.append method is deprecated and will be removed from pandas in a future version. Use pandas.concat instead.
  dfprob1=dfprob1posi.append(dfprob1neg)

<Figure size 2500x1000 with 0 Axes>

../_images/Tutorials_scCAMEL_SWAPLINEv2_Tutorials_scCAMEL-SWAPLINE_SensoryNeurons_54_2.png

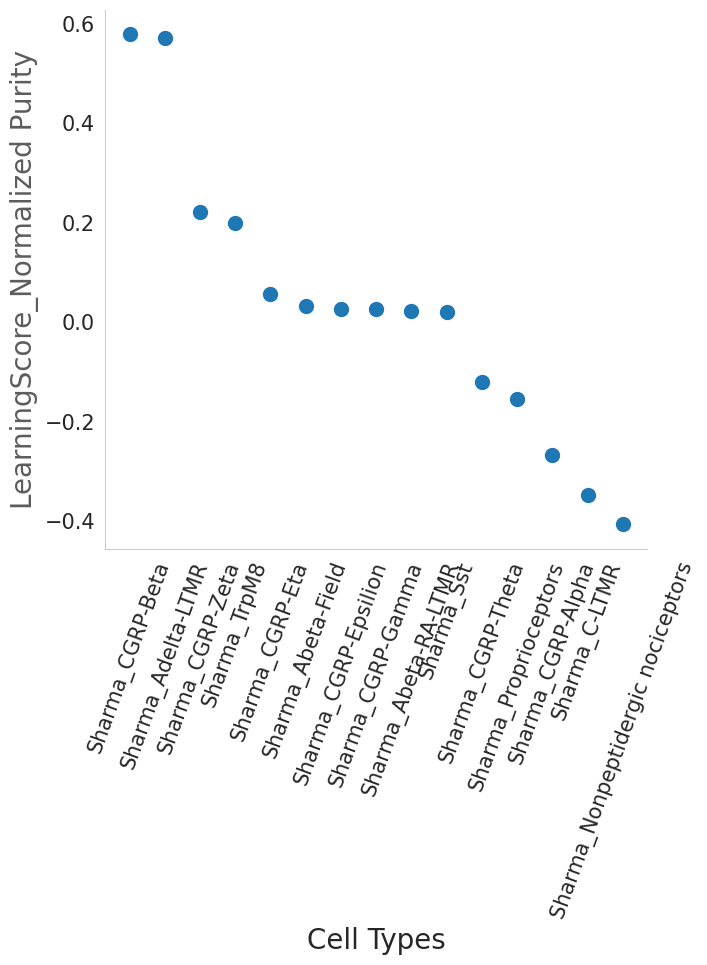

Cell_Type Purity

[39]:

#The ratio of the purity entropy for each cluster based on their learning scores, is used as a measure of purity.
#The function returns a pandas dataframe sorted by the purity score

[40]:

dfpurity1=scm.CamelSwapline.PurityEstimationLearningScore(datax=scref, clusterlist="Cluster",   elbow=False, figureplot=True)

<Figure size 640x480 with 0 Axes>

../_images/Tutorials_scCAMEL_SWAPLINEv2_Tutorials_scCAMEL-SWAPLINE_SensoryNeurons_57_1.png

association between cell-types

[41]:

scref

[41]:

AnnData object with n_obs × n_vars = 11057 × 15677
    obs: 'Cluster', 'mtrain_index', 'sample', 'species', 'batch', 'color', 'PredictCluster', 'ClusterConsistanceScore'
    var: 'Filter1', 'MVgene', 'RefGeneList'
    uns: 'refcolor_dict', 'train_set_gene', 'mclasses_names', 'mwanted_order', 'Celltype_Score_RefCellType', 'Celltype_OrderNumber'
    obsm: 'train_set_values', 'Celltype_Score', 'CelltypeScoreCoordinates'

[42]:

# the heatmap of hierarchical clustering represents the cell-type similarity or association
#color from dark purple to light yellow represents the association from low to high
#number inside of eahc square indicating the association value.

[43]:

scm.CamelSwapline.CellTypeSimilarity(datax=scref, labelnum=True,  metricvalue='correlation',methodvalue="complete")

<Figure size 1500x1500 with 0 Axes>

../_images/Tutorials_scCAMEL_SWAPLINEv2_Tutorials_scCAMEL-SWAPLINE_SensoryNeurons_61_1.png

[44]:

scm.CamelSwapline.CellTypeSimilarity(datax=scref, labelnum=False,  metricvalue='correlation',methodvalue="complete")

<Figure size 1500x1500 with 0 Axes>

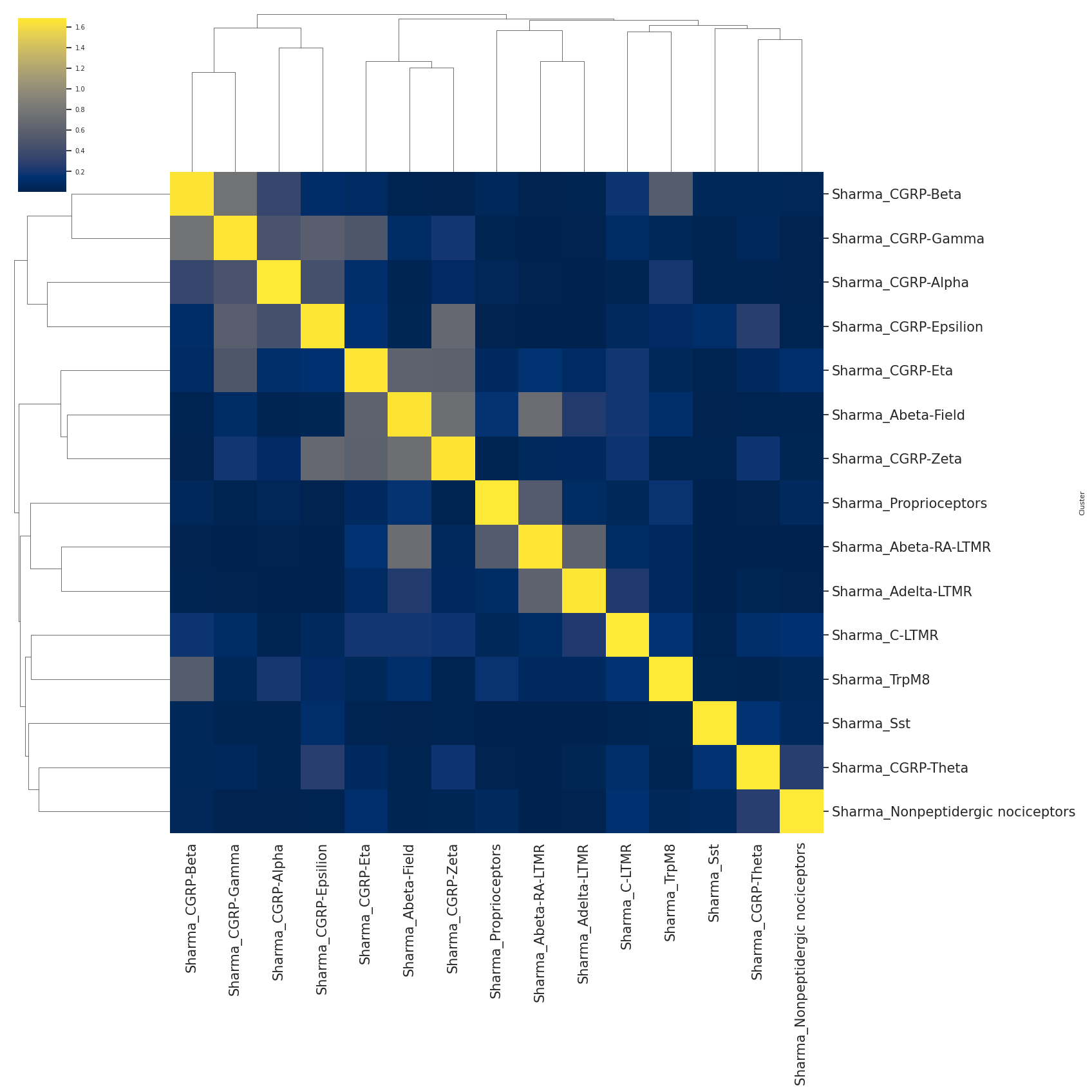

../_images/Tutorials_scCAMEL_SWAPLINEv2_Tutorials_scCAMEL-SWAPLINE_SensoryNeurons_62_1.png

[ ]:

Save data

[45]:

scref

[45]:

AnnData object with n_obs × n_vars = 11057 × 15677
    obs: 'Cluster', 'mtrain_index', 'sample', 'species', 'batch', 'color', 'PredictCluster', 'ClusterConsistanceScore'
    var: 'Filter1', 'MVgene', 'RefGeneList'
    uns: 'refcolor_dict', 'train_set_gene', 'mclasses_names', 'mwanted_order', 'Celltype_Score_RefCellType', 'Celltype_OrderNumber'
    obsm: 'train_set_values', 'Celltype_Score', 'CelltypeScoreCoordinates'

[46]:

cd .

/mnt/f/Yizhou_KI_OneCloud/OneDrive - Karolinska Institutet/Datasets_Template/Datasets

[47]:

work_dir="/mnt/f/Yizhou_KI_OneCloud/OneDrive - Karolinska Institutet/Datasets_Template/Datasets"
QueryName="SharmaMouse"
TrainingName="SharmaMouse"
filename="%s_%s_Ref%s_MergeCluster.h5ad"%(QueryName,TrainingName,today)

[48]:

os.path.join(work_dir,filename)

[48]:

'/mnt/f/Yizhou_KI_OneCloud/OneDrive - Karolinska Institutet/Datasets_Template/Datasets/SharmaMouse_SharmaMouse_Ref2023-05-23_MergeCluster.h5ad'

[49]:

CamelSwapline.writedata(adatax=scref,filename=filename,filepath=work_dir)

[50]:

scref.X=scref.X.todense()

[ ]:

Prediction

ZeiselMouse_cluster

[51]:

scpdt=screfall[screfall.obs["batch"]=="1"]

[52]:

set(scpdt.obs["Cluster"])

[52]:

{'NF1',
 'NF2_3',
 'NF4',
 'NP1',
 'NP2',
 'NP3',
 'PEP1_PSPEP2',
 'PEP1_PSPEP3',
 'PEP1_PSPEP4',
 'PEP1_PSPEP5',
 'PEP2',
 'TRPM8',
 'Th'}

[53]:

scpdt

[53]:

View of AnnData object with n_obs × n_vars = 1578 × 15677
    obs: 'Cluster', 'mtrain_index', 'sample', 'species', 'batch', 'color'
    uns: 'refcolor_dict'

[54]:

scpdt.var.index

[54]:

Index(['HTR1F', 'GPAT2', 'CMTM7', 'SST', 'NTS', 'IL31RA', 'NPPB', 'ADA',
       'CFAP61', 'CBLN1',
       ...
       'KRTAP7-1', 'NKX1-1', 'NKX1-2', 'NKX2-2', 'NKX3-1', 'NKX3-2', 'NKX6-1',
       'NKX6-2', 'NKX6-3', 'RPL9'],
      dtype='object', length=15677)

[55]:

scpdt2=scpdt.copy()
scpdt2.X=scpdt.X*(scref.X.std()/scpdt2.X.std())

[56]:

########################################################
########################################################
#remeber to change the file path in tftable
########################################################
########################################################
scpdt =scm.CamelPrefiltering.MVgene_Scaling(datax=scpdt2,TPTT=1000000,   commongene=scref.var.index.tolist(),
                                        sharedMVgenes=scref.uns[ 'train_set_gene'].tolist(),
                                                                                            std_scaling=True,score=None, thrs=None,  mprotogruop=None,
    tftable="f:/Dropbox/data/proj/PE_HYZ/PublicDataSet/FantomTF2CLUSTER_human_official.txt", learninggroup="test")

CamelRunning---GenesScaling......

/home/huyiz/anaconda3/envs/newpy38/lib/python3.8/site-packages/scCAMEL/CamelPrefiltering.py:820: FutureWarning: In a future version of pandas all arguments of DataFrame.dropna will be keyword-only.
  scalegbm = dfpfc.div(dfpfc.std(1), axis=0).dropna(0)

CamelRunning---TestGenesScaling......Finished

[57]:

scpdt

[57]:

AnnData object with n_obs × n_vars = 1578 × 15677
    obs: 'Cluster', 'mtrain_index', 'sample', 'species', 'batch', 'color'
    var: 'RefGeneList'
    uns: 'refcolor_dict', 'train_set_gene', 'mclasses_names'
    obsm: 'test_set_values'

[58]:

#del scpdt.obs["color"]

[59]:

# if color is not definedi
#scpdt=scm.CamelSwapline.addcolor(datax=scpdt,clustername="Cluster", colorcode="color")

[60]:

scpdt.uns["mwanted_order"] =list(sort(list(set(scpdt.obs["Cluster"]))))

[61]:

scpdt

[61]:

AnnData object with n_obs × n_vars = 1578 × 15677
    obs: 'Cluster', 'mtrain_index', 'sample', 'species', 'batch', 'color'
    var: 'RefGeneList'
    uns: 'refcolor_dict', 'train_set_gene', 'mclasses_names', 'mwanted_order'
    obsm: 'test_set_values'

[62]:

test=scm.CamelSwapline.prediction(datax=scpdt, mcolor_dict=scpdt.uns["refcolor_dict"],net=net,learninggroup="test", radarplot=True, fontsizeValue=35,
              datarefplot=scref,               ncolnm=1, bbValue=(1.1, 1.05))

../_images/Tutorials_scCAMEL_SWAPLINEv2_Tutorials_scCAMEL-SWAPLINE_SensoryNeurons_85_0.png

[63]:

scpdt

[63]:

AnnData object with n_obs × n_vars = 1578 × 15677
    obs: 'Cluster', 'mtrain_index', 'sample', 'species', 'batch', 'color'
    var: 'RefGeneList'
    uns: 'refcolor_dict', 'train_set_gene', 'mclasses_names', 'mwanted_order', 'Celltype_Score_RefCellType', 'Celltype_OrderNumber'
    obsm: 'test_set_values', 'Celltype_Score', 'CelltypeScoreCoordinates'

[64]:

genename=sort(list(set(scpdt.obs["Cluster"])))
name=sort(list(set(scref.obs["Cluster"])))

[65]:

dfprob=pd.DataFrame(scpdt.obsm['Celltype_Score'])
dfprob.columns=scpdt.uns['Celltype_Score_RefCellType']
dfprob.index=scpdt.obs.index
dfmk=dfprob.astype(float).join(scpdt.obs["Cluster"],how="inner").T
dfprob=scm.CamelSwapline.CellTypeSimilarityViolinPlot(datax=scpdt, dataref=scref)

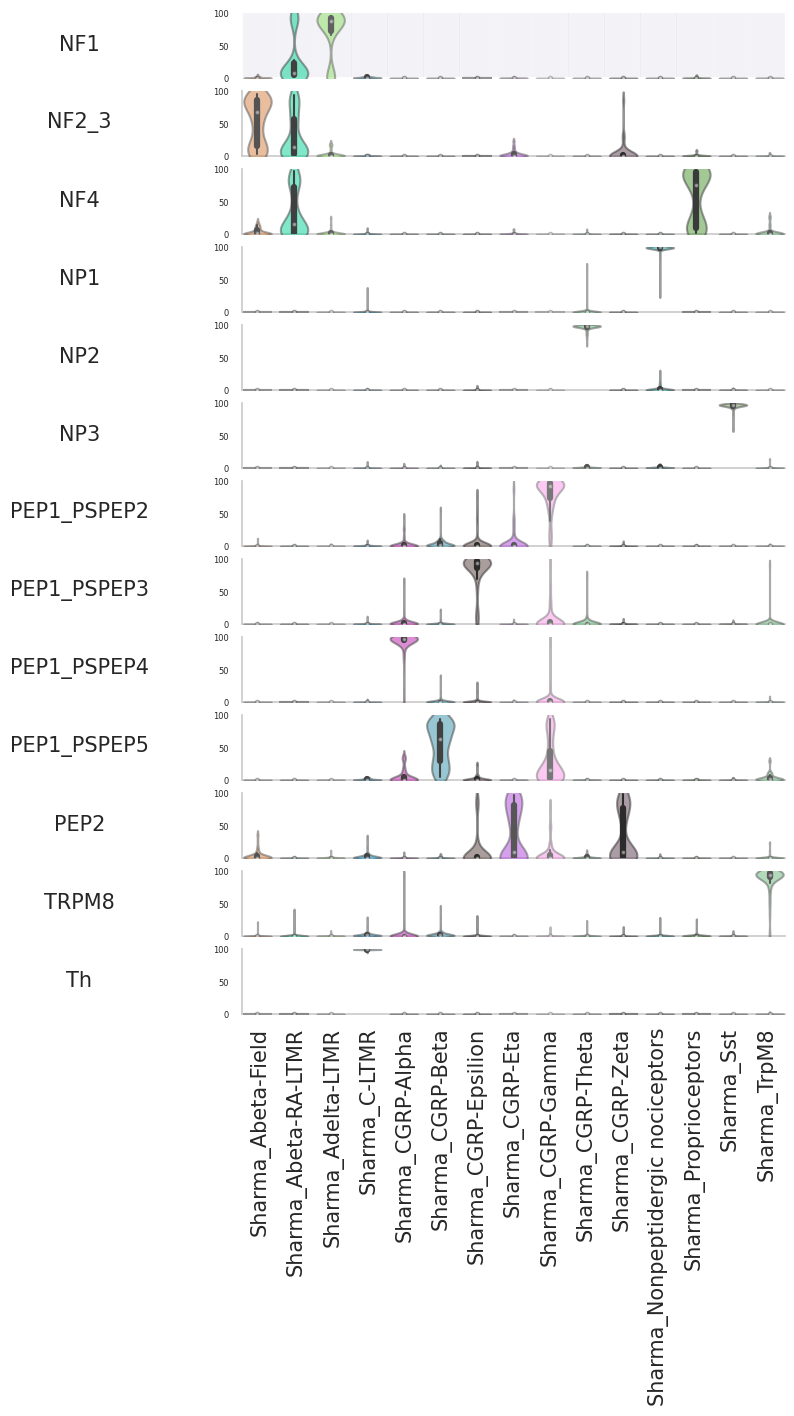

../_images/Tutorials_scCAMEL_SWAPLINEv2_Tutorials_scCAMEL-SWAPLINE_SensoryNeurons_88_0.png

Save data

[66]:

cd .

/mnt/f/Yizhou_KI_OneCloud/OneDrive - Karolinska Institutet/Datasets_Template/Datasets

[67]:

scpdt

[67]:

AnnData object with n_obs × n_vars = 1578 × 15677
    obs: 'Cluster', 'mtrain_index', 'sample', 'species', 'batch', 'color'
    var: 'RefGeneList'
    uns: 'refcolor_dict', 'train_set_gene', 'mclasses_names', 'mwanted_order', 'Celltype_Score_RefCellType', 'Celltype_OrderNumber'
    obsm: 'test_set_values', 'Celltype_Score', 'CelltypeScoreCoordinates'

[68]:

work_dir="/mnt/f/Yizhou_KI_OneCloud/OneDrive - Karolinska Institutet/Datasets_Template/Datasets"
QueryName="ZeiselMouse"
TrainingName="SharmaMouse"
filename="%s_%s_Ref%s_MergeCluster.h5ad"%(QueryName,TrainingName,today)

[69]:

os.path.join(work_dir,filename)

[69]:

'/mnt/f/Yizhou_KI_OneCloud/OneDrive - Karolinska Institutet/Datasets_Template/Datasets/ZeiselMouse_SharmaMouse_Ref2023-05-23_MergeCluster.h5ad'

[70]:

CamelSwapline.writedata(adatax=scref,filename=filename,filepath=work_dir)

[ ]:
