Tutorial: VICUNA intercellular communication with PyPI scCAMEL 0.47b1
This tutorial analyzes NTN1 ligand-receptor communication between the Couturier2020 developmental GBM dataset and the Zeisel dentate gyrus dataset. It uses the latest PyPI-installed scCAMEL package, where the reusable data conversion, sparse EScore, long-table conversion, and plotting functions live in scCAMEL.CamelVicuna.
1. Configure paths and import PyPI scCAMEL
This notebook imports scCAMEL from the active Python environment. If you are running it on a new machine, install the package first with pip install scCAMEL==0.47b1 or pip install -U scCAMEL.
[1]:
# NOTE: Configure the input files and output folders, then import the PyPI-installed scCAMEL package.
import importlib.metadata as importlib_metadata
from pathlib import Path
import anndata as ad
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import seaborn as sns
from IPython.display import Image as IPyImage, display
VERSION_ROOT = Path("/mnt/e/Loal_Temp/Vicuna_Example/scCAMEL_VICUNA_updated_20260610")
PROJECT_ROOT = Path("/mnt/e/Loal_Temp/Vicuna_Example")
import scCAMEL
from scCAMEL import CamelVicuna
SC_CAMEL_VERSION = importlib_metadata.version("scCAMEL")
OUTPUT_DIR, FIG_DIR, TABLE_DIR = CamelVicuna.ensure_output_dirs(
VERSION_ROOT / "outputs" / "ntn1_couturier_zeisel_pypi047b1_tutorial"
)
MAIN_PATH = PROJECT_ROOT / "Couturier2020_DevGBM_Ref2023-05-27.h5ad"
ZEISEL_PATH = PROJECT_ROOT / "ZeiselDentateGyrus_Ref2023-05-27.h5ad"
LR_PATH = PROJECT_ROOT / "Human_Final_ligand-receptor_Reference20250621.csv"
MOUSE2HUMAN_PATH = Path("/mnt/f/Dropbox/data/proj/PE_HYZ/PublicDataSet/Homologene_mouse2human_dict2.pickle")
CLUSTER_KEY = "Cluster"
LIGAND = "NTN1"
sns.set_theme(style="whitegrid", context="notebook")
plt.rcParams["figure.dpi"] = 140
print("Using installed scCAMEL:", SC_CAMEL_VERSION)
print("scCAMEL import path:", Path(scCAMEL.__file__).parent)
print("CamelVicuna path:", Path(CamelVicuna.__file__))
print("Outputs:", OUTPUT_DIR)
Using installed scCAMEL: 0.47b1
scCAMEL import path: /home/huyiz/anaconda3/envs/py310/lib/python3.10/site-packages/scCAMEL
CamelVicuna path: /home/huyiz/anaconda3/envs/py310/lib/python3.10/site-packages/scCAMEL/CamelVicuna.py
Outputs: /mnt/e/Loal_Temp/Vicuna_Example/scCAMEL_VICUNA_updated_20260610/outputs/ntn1_couturier_zeisel_pypi047b1_tutorial
2. Load datasets and humanize mouse genes
The Zeisel dentate gyrus dataset is mouse-derived, so we map mouse gene symbols to human ortholog symbols before comparing it to the human GBM dataset.
[2]:
# NOTE: Load both datasets and convert Zeisel mouse genes to human symbols through CamelVicuna.
mouse2human = CamelVicuna.load_mouse_to_human_mapping(MOUSE2HUMAN_PATH)
main = ad.read_h5ad(MAIN_PATH)
zeisel_raw = ad.read_h5ad(ZEISEL_PATH)
main.var_names_make_unique()
zeisel, zeisel_conversion = CamelVicuna.convert_mouse_to_human_adata(zeisel_raw, mouse2human)
main_fraction, main_hits = CamelVicuna.detect_mouse_gene_fraction(main, mouse2human)
main_conversion = {
"converted": False,
"mapping_hits": main_hits,
"mapping_fraction": main_fraction,
"genes_before": main.n_vars,
"genes_after": main.n_vars,
}
dataset_summary = pd.DataFrame([
CamelVicuna.summarize_dataset("Couturier2020_DevGBM", main, main_conversion, cluster_key=CLUSTER_KEY),
CamelVicuna.summarize_dataset("ZeiselDentateGyrus_humanized", zeisel, zeisel_conversion, cluster_key=CLUSTER_KEY),
])
display(dataset_summary)
CamelVicuna.save_table(dataset_summary, TABLE_DIR / "dataset_summary.csv")
cluster_counts = pd.concat(
{
"Couturier2020_DevGBM": main.obs[CLUSTER_KEY].astype(str).value_counts(),
"ZeiselDentateGyrus_humanized": zeisel.obs[CLUSTER_KEY].astype(str).value_counts(),
},
axis=1,
).fillna(0).astype(int)
display(cluster_counts)
CamelVicuna.save_table(cluster_counts, TABLE_DIR / "cluster_counts.csv")
| dataset | cells | genes | matrix | cluster_key | n_clusters | converted_mouse_to_human | mapping_hits | mapping_fraction | genes_before_conversion | genes_after_conversion | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | Couturier2020_DevGBM | 18475 | 33660 | sparse | Cluster | 6 | False | 15 | 0.000446 | 33660 | 33660 |
| 1 | ZeiselDentateGyrus_humanized | 5454 | 12516 | sparse | Cluster | 15 | True | 12516 | 0.860502 | 14545 | 12516 |
| Couturier2020_DevGBM | ZeiselDentateGyrus_humanized | |
|---|---|---|
| Cluster | ||
| Progenitor | 5040 | 0 |
| Unassigned | 5026 | 0 |
| Mesenchymal | 2824 | 0 |
| Oligo | 2589 | 0 |
| Astro | 1883 | 0 |
| Neuronal | 1113 | 0 |
| Granule | 0 | 3045 |
| Neuroblast | 0 | 874 |
| Astrocytes | 0 | 335 |
| nIPC/Rgl | 0 | 253 |
| Microglia | 0 | 169 |
| Endo | 0 | 165 |
| Mossy | 0 | 137 |
| GABA | 0 | 99 |
| Cajal-Retzius | 0 | 93 |
| OLIG | 0 | 79 |
| OPC | 0 | 66 |
| Peri/VLMC | 0 | 59 |
| NFOL | 0 | 35 |
| Cck-Tox | 0 | 27 |
| PVM | 0 | 18 |
[2]:
PosixPath('/mnt/e/Loal_Temp/Vicuna_Example/scCAMEL_VICUNA_updated_20260610/outputs/ntn1_couturier_zeisel_pypi047b1_tutorial/tables/cluster_counts.csv')
3. Select NTN1 ligand-receptor pairs
We normalize the ligand-receptor reference table and keep pairs where NTN1 is the ligand.
[3]:
# NOTE: Filter the ligand-receptor reference table to NTN1 and annotate gene presence in each dataset.
ntn1_pairs = CamelVicuna.prepare_ligand_receptor_pairs(
LR_PATH,
ligand=LIGAND,
datasets={
"couturier": main,
"zeisel_humanized": zeisel,
},
)
display(ntn1_pairs)
CamelVicuna.save_table(ntn1_pairs, TABLE_DIR / "ntn1_ligand_receptor_pairs.csv")
print(f"NTN1 in Couturier genes: {LIGAND in set(main.var_names)}")
print(f"NTN1 in humanized Zeisel genes: {LIGAND in set(zeisel.var_names)}")
print("NTN1 receptors available in Zeisel:", int(ntn1_pairs["receptor_in_zeisel_humanized"].sum()))
print("NTN1 receptors available in Couturier:", int(ntn1_pairs["receptor_in_couturier"].sum()))
| PPI | ligand_symbol | receptor_symbol | receptor_in_couturier | ligand_in_couturier | receptor_in_zeisel_humanized | ligand_in_zeisel_humanized | |
|---|---|---|---|---|---|---|---|
| NTN1-DCC | NTN1_DCC | NTN1 | DCC | True | True | True | True |
| NTN1-UNC5C | NTN1_UNC5C | NTN1 | UNC5C | True | True | True | True |
| NTN1-NEO1 | NTN1_NEO1 | NTN1 | NEO1 | True | True | True | True |
| NTN1-ITGB4 | NTN1_ITGB4 | NTN1 | ITGB4 | True | True | True | True |
| NTN1-ITGA6 | NTN1_ITGA6 | NTN1 | ITGA6 | True | True | True | True |
| NTN1-ACVR1B | NTN1_ACVR1B | NTN1 | ACVR1B | True | True | True | True |
| NTN1-TGFBR1 | NTN1_TGFBR1 | NTN1 | TGFBR1 | True | True | True | True |
| NTN1-NOTCH1 | NTN1_NOTCH1 | NTN1 | NOTCH1 | True | True | True | True |
| NTN1-NOTCH2 | NTN1_NOTCH2 | NTN1 | NOTCH2 | True | True | True | True |
| NTN1-PTCH1 | NTN1_PTCH1 | NTN1 | PTCH1 | True | True | True | True |
| NTN1-UNC5A | NTN1_UNC5A | NTN1 | UNC5A | True | True | True | True |
| NTN1-ACVR1C | NTN1_ACVR1C | NTN1 | ACVR1C | True | True | True | True |
| NTN1-ROBO2 | NTN1_ROBO2 | NTN1 | ROBO2 | True | True | True | True |
| NTN1-NOTCH3 | NTN1_NOTCH3 | NTN1 | NOTCH3 | True | True | True | True |
| NTN1-PTCH2 | NTN1_PTCH2 | NTN1 | PTCH2 | True | True | False | True |
NTN1 in Couturier genes: True
NTN1 in humanized Zeisel genes: True
NTN1 receptors available in Zeisel: 14
NTN1 receptors available in Couturier: 15
4. Compute sparse VICUNA EScore matrices
The EScore helper avoids densifying the full expression matrix, which keeps the tutorial compatible with larger modern .h5ad files.
[4]:
# NOTE: Compute sparse-friendly gene-by-cluster EScores for both datasets.
escore_main = CamelVicuna.compute_escore_sparse(main, CLUSTER_KEY)
escore_zeisel = CamelVicuna.compute_escore_sparse(zeisel, CLUSTER_KEY)
print("Couturier EScore:", escore_main.shape)
print("Zeisel humanized EScore:", escore_zeisel.shape)
CamelVicuna.save_table(escore_main, TABLE_DIR / "couturier_escore_genes_by_cluster.csv")
CamelVicuna.save_table(escore_zeisel, TABLE_DIR / "zeisel_humanized_escore_genes_by_cluster.csv")
ntn1_escore = pd.concat(
{
"Couturier2020_DevGBM": escore_main.loc[LIGAND] if LIGAND in escore_main.index else pd.Series(dtype=float),
"ZeiselDentateGyrus_humanized": escore_zeisel.loc[LIGAND] if LIGAND in escore_zeisel.index else pd.Series(dtype=float),
},
axis=1,
).fillna(0)
display(ntn1_escore)
CamelVicuna.save_table(ntn1_escore, TABLE_DIR / "ntn1_ligand_escore_by_cluster.csv")
Couturier EScore: (33660, 6)
Zeisel humanized EScore: (12516, 15)
| Couturier2020_DevGBM | ZeiselDentateGyrus_humanized | |
|---|---|---|
| Astro | 0.129475 | 0.000000 |
| Mesenchymal | 0.165878 | 0.000000 |
| Neuronal | 0.005197 | 0.000000 |
| Oligo | 0.057008 | 0.000000 |
| Progenitor | 0.039397 | 0.000000 |
| Unassigned | 0.058557 | 0.000000 |
| Astrocytes | 0.000000 | 0.136631 |
| Cajal-Retzius | 0.000000 | 0.017685 |
| Cck-Tox | 0.000000 | 0.060915 |
| Endo | 0.000000 | 1.617338 |
| GABA | 0.000000 | 3.344561 |
| Granule | 0.000000 | 0.025965 |
| Microglia | 0.000000 | 0.009732 |
| Mossy | 0.000000 | 0.012005 |
| NFOL | 0.000000 | 5.627406 |
| Neuroblast | 0.000000 | 0.045938 |
| OLIG | 0.000000 | 0.020819 |
| OPC | 0.000000 | 18.301580 |
| PVM | 0.000000 | 0.091372 |
| Peri/VLMC | 0.000000 | 1.514291 |
| nIPC/Rgl | 0.000000 | 1.069497 |
[4]:
PosixPath('/mnt/e/Loal_Temp/Vicuna_Example/scCAMEL_VICUNA_updated_20260610/outputs/ntn1_couturier_zeisel_pypi047b1_tutorial/tables/ntn1_ligand_escore_by_cluster.csv')
5. Score cross-dataset NTN1 communication
We score both directions: GBM NTN1 ligand to dentate gyrus receptors, and dentate gyrus NTN1 ligand to GBM receptors.
[5]:
# NOTE: Run VICUNA cross-dataset ligand-receptor scoring in both communication directions.
main_clusters = list(escore_main.columns)
zeisel_clusters = list(escore_zeisel.columns)
main_to_zeisel = CamelVicuna.lr_score_cross_datasets(
main,
escore_main,
zeisel,
escore_zeisel,
ntn1_pairs,
clusters_L=main_clusters,
clusters_R=zeisel_clusters,
use_var_filter=False,
include_all_pairs=True,
missing_value=0.0,
verbose=False,
)
zeisel_to_main = CamelVicuna.lr_score_cross_datasets(
zeisel,
escore_zeisel,
main,
escore_main,
ntn1_pairs,
clusters_L=zeisel_clusters,
clusters_R=main_clusters,
use_var_filter=False,
include_all_pairs=True,
missing_value=0.0,
verbose=False,
)
display(main_to_zeisel.head())
display(zeisel_to_main.head())
CamelVicuna.save_table(main_to_zeisel, TABLE_DIR / "ntn1_scores_couturier_ligand_to_zeisel_receptor.csv")
CamelVicuna.save_table(zeisel_to_main, TABLE_DIR / "ntn1_scores_zeisel_ligand_to_couturier_receptor.csv")
| Astro(lig)-Astrocytes(rec) | Astro(lig)-Cajal-Retzius(rec) | Astro(lig)-Cck-Tox(rec) | Astro(lig)-Endo(rec) | Astro(lig)-GABA(rec) | Astro(lig)-Granule(rec) | Astro(lig)-Microglia(rec) | Astro(lig)-Mossy(rec) | Astro(lig)-NFOL(rec) | Astro(lig)-Neuroblast(rec) | ... | Unassigned(lig)-Granule(rec) | Unassigned(lig)-Microglia(rec) | Unassigned(lig)-Mossy(rec) | Unassigned(lig)-NFOL(rec) | Unassigned(lig)-Neuroblast(rec) | Unassigned(lig)-OLIG(rec) | Unassigned(lig)-OPC(rec) | Unassigned(lig)-PVM(rec) | Unassigned(lig)-Peri/VLMC(rec) | Unassigned(lig)-nIPC/Rgl(rec) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NTN1-DCC | 0.002050 | 0.009336 | 0.002013 | 0.000329 | 0.010580 | 0.056994 | 0.000322 | 0.165493 | 0.001553 | 0.075037 | ... | 0.025777 | 0.000145 | 0.074847 | 0.000702 | 0.033937 | 0.005194 | 0.015954 | 0.001366 | 0.000417 | 0.000097 |
| NTN1-UNC5C | 0.003546 | 0.000295 | 0.062440 | 0.000166 | 0.883177 | 0.026145 | 0.000162 | 1.249618 | 0.043046 | 0.003197 | ... | 0.011825 | 0.000073 | 0.565162 | 0.019468 | 0.001446 | 0.016173 | 0.013924 | 0.000688 | 0.000210 | 0.001391 |
| NTN1-NEO1 | 0.033468 | 0.012949 | 0.012244 | 0.016123 | 0.059283 | 0.028778 | 0.000445 | 0.237931 | 0.018831 | 0.052915 | ... | 0.013015 | 0.000201 | 0.107609 | 0.008517 | 0.023932 | 0.040132 | 0.007256 | 0.003836 | 0.003188 | 0.005261 |
| NTN1-ITGB4 | 0.001237 | 0.004455 | 0.015345 | 0.002511 | 0.004185 | 0.007059 | 0.002452 | 0.045570 | 0.011838 | 0.000474 | ... | 0.003192 | 0.001109 | 0.020610 | 0.005354 | 0.000214 | 13.406593 | 0.002839 | 0.010410 | 0.003176 | 0.000741 |
| NTN1-ITGA6 | 0.282606 | 0.000261 | 0.000899 | 0.322254 | 0.084249 | 0.009304 | 0.055984 | 0.025770 | 0.015055 | 0.021366 | ... | 0.004208 | 0.025320 | 0.011655 | 0.006809 | 0.009663 | 0.000139 | 0.000166 | 0.044992 | 0.023919 | 0.012146 |
5 rows × 90 columns
| Astrocytes(lig)-Astro(rec) | Astrocytes(lig)-Mesenchymal(rec) | Astrocytes(lig)-Neuronal(rec) | Astrocytes(lig)-Oligo(rec) | Astrocytes(lig)-Progenitor(rec) | Astrocytes(lig)-Unassigned(rec) | Cajal-Retzius(lig)-Astro(rec) | Cajal-Retzius(lig)-Mesenchymal(rec) | Cajal-Retzius(lig)-Neuronal(rec) | Cajal-Retzius(lig)-Oligo(rec) | ... | Peri/VLMC(lig)-Neuronal(rec) | Peri/VLMC(lig)-Oligo(rec) | Peri/VLMC(lig)-Progenitor(rec) | Peri/VLMC(lig)-Unassigned(rec) | nIPC/Rgl(lig)-Astro(rec) | nIPC/Rgl(lig)-Mesenchymal(rec) | nIPC/Rgl(lig)-Neuronal(rec) | nIPC/Rgl(lig)-Oligo(rec) | nIPC/Rgl(lig)-Progenitor(rec) | nIPC/Rgl(lig)-Unassigned(rec) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NTN1-DCC | 0.005438 | 0.010076 | 0.028388 | 0.006397 | 0.008431 | 0.009167 | 0.000704 | 0.001304 | 0.003674 | 0.000828 | ... | 0.314630 | 0.070899 | 0.093446 | 0.101594 | 0.042564 | 0.078869 | 0.222213 | 0.050074 | 0.065998 | 0.071753 |
| NTN1-UNC5C | 0.007830 | 0.008013 | 0.006613 | 0.000847 | 0.020934 | 0.010461 | 0.001014 | 0.001037 | 0.000856 | 0.000110 | ... | 0.073292 | 0.009390 | 0.232016 | 0.115941 | 0.061292 | 0.062724 | 0.051764 | 0.006632 | 0.163865 | 0.081885 |
| NTN1-NEO1 | 0.012324 | 0.015459 | 0.003156 | 0.005781 | 0.009758 | 0.008433 | 0.001595 | 0.002001 | 0.000409 | 0.000748 | ... | 0.034983 | 0.064071 | 0.108153 | 0.093464 | 0.096466 | 0.121005 | 0.024707 | 0.045251 | 0.076385 | 0.066011 |
| NTN1-ITGB4 | 0.030540 | 0.032069 | 0.000444 | 0.001563 | 0.003852 | 0.008558 | 0.003953 | 0.004151 | 0.000057 | 0.000202 | ... | 0.004919 | 0.017322 | 0.042687 | 0.094851 | 0.239052 | 0.251023 | 0.003474 | 0.012234 | 0.030149 | 0.066990 |
| NTN1-ITGA6 | 0.025086 | 0.007059 | 0.005380 | 0.003924 | 0.009840 | 0.009722 | 0.003247 | 0.000914 | 0.000696 | 0.000508 | ... | 0.059626 | 0.043494 | 0.109057 | 0.107750 | 0.196362 | 0.055254 | 0.042112 | 0.030718 | 0.077023 | 0.076101 |
5 rows × 90 columns
[5]:
PosixPath('/mnt/e/Loal_Temp/Vicuna_Example/scCAMEL_VICUNA_updated_20260610/outputs/ntn1_couturier_zeisel_pypi047b1_tutorial/tables/ntn1_scores_zeisel_ligand_to_couturier_receptor.csv')
6. Build tidy result tables
The package now converts wide LR score matrices into a long table and summarizes aggregate source-to-target cluster communication.
[6]:
# NOTE: Convert score matrices to long format and summarize top interactions and cluster-pair totals.
long_scores = pd.concat(
[
CamelVicuna.lr_matrix_to_long(main_to_zeisel, "Couturier2020_DevGBM", "ZeiselDentateGyrus_humanized"),
CamelVicuna.lr_matrix_to_long(zeisel_to_main, "ZeiselDentateGyrus_humanized", "Couturier2020_DevGBM"),
],
ignore_index=True,
)
long_scores, top_interactions, cluster_pair_summary = CamelVicuna.summarize_lr_long_scores(long_scores, top_n=50)
display(top_interactions)
CamelVicuna.save_table(long_scores, TABLE_DIR / "ntn1_all_directional_scores_long.csv")
CamelVicuna.save_table(top_interactions, TABLE_DIR / "ntn1_top50_directional_scores.csv")
display(cluster_pair_summary.head(30))
CamelVicuna.save_table(cluster_pair_summary, TABLE_DIR / "ntn1_cluster_pair_score_summary.csv")
| direction | source_dataset | target_dataset | source_cluster | target_cluster | pair | ligand | receptor | score | |
|---|---|---|---|---|---|---|---|---|---|
| 0 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Couturier2020_DevGBM | ZeiselDentateGyrus_humanized | Mesenchymal | OLIG | NTN1-ITGB4 | NTN1 | ITGB4 | 37.977537 |
| 1 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Couturier2020_DevGBM | ZeiselDentateGyrus_humanized | Astro | OLIG | NTN1-ITGB4 | NTN1 | ITGB4 | 29.643023 |
| 2 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Couturier2020_DevGBM | ZeiselDentateGyrus_humanized | Unassigned | OLIG | NTN1-ITGB4 | NTN1 | ITGB4 | 13.406593 |
| 3 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Couturier2020_DevGBM | ZeiselDentateGyrus_humanized | Oligo | OLIG | NTN1-ITGB4 | NTN1 | ITGB4 | 13.051785 |
| 4 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Couturier2020_DevGBM | ZeiselDentateGyrus_humanized | Progenitor | OLIG | NTN1-ITGB4 | NTN1 | ITGB4 | 9.019840 |
| 5 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Mesenchymal | NTN1-ACVR1C | NTN1 | ACVR1C | 8.698030 |
| 6 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Mesenchymal | NTN1-ITGB4 | NTN1 | ITGB4 | 4.295583 |
| 7 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Couturier2020_DevGBM | ZeiselDentateGyrus_humanized | Mesenchymal | Endo | NTN1-NOTCH3 | NTN1 | NOTCH3 | 4.228401 |
| 8 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Astro | NTN1-ITGB4 | NTN1 | ITGB4 | 4.090730 |
| 9 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Mesenchymal | NTN1-NOTCH3 | NTN1 | NOTCH3 | 3.827139 |
| 10 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Neuronal | NTN1-DCC | NTN1 | DCC | 3.802583 |
| 11 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Astro | NTN1-NOTCH3 | NTN1 | NOTCH3 | 3.636016 |
| 12 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Astro | NTN1-ITGA6 | NTN1 | ITGA6 | 3.360210 |
| 13 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Couturier2020_DevGBM | ZeiselDentateGyrus_humanized | Astro | Endo | NTN1-NOTCH3 | NTN1 | NOTCH3 | 3.300440 |
| 14 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Neuronal | NTN1-ROBO2 | NTN1 | ROBO2 | 3.124694 |
| 15 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Mesenchymal | NTN1-PTCH2 | NTN1 | PTCH2 | 3.011306 |
| 16 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Progenitor | NTN1-UNC5C | NTN1 | UNC5C | 2.804120 |
| 17 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Mesenchymal | NTN1-NOTCH2 | NTN1 | NOTCH2 | 2.750143 |
| 18 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | NFOL | Mesenchymal | NTN1-ACVR1C | NTN1 | ACVR1C | 2.674487 |
| 19 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Astro | NTN1-PTCH2 | NTN1 | PTCH2 | 2.386175 |
| 20 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Astro | NTN1-UNC5A | NTN1 | UNC5A | 2.293200 |
| 21 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Couturier2020_DevGBM | ZeiselDentateGyrus_humanized | Mesenchymal | Peri/VLMC | NTN1-NOTCH3 | NTN1 | NOTCH3 | 2.132320 |
| 22 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Mesenchymal | NTN1-NEO1 | NTN1 | NEO1 | 2.070685 |
| 23 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Progenitor | NTN1-NOTCH1 | NTN1 | NOTCH1 | 2.055144 |
| 24 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Neuronal | NTN1-ACVR1B | NTN1 | ACVR1B | 2.042687 |
| 25 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Mesenchymal | NTN1-TGFBR1 | NTN1 | TGFBR1 | 1.990812 |
| 26 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Astro | NTN1-NOTCH2 | NTN1 | NOTCH2 | 1.983341 |
| 27 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Progenitor | NTN1-ROBO2 | NTN1 | ROBO2 | 1.937858 |
| 28 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Neuronal | NTN1-ACVR1C | NTN1 | ACVR1C | 1.844239 |
| 29 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Astro | NTN1-PTCH1 | NTN1 | PTCH1 | 1.819994 |
| 30 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Progenitor | NTN1-TGFBR1 | NTN1 | TGFBR1 | 1.673194 |
| 31 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Couturier2020_DevGBM | ZeiselDentateGyrus_humanized | Astro | Peri/VLMC | NTN1-NOTCH3 | NTN1 | NOTCH3 | 1.664363 |
| 32 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Astro | NTN1-NEO1 | NTN1 | NEO1 | 1.650757 |
| 33 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Couturier2020_DevGBM | ZeiselDentateGyrus_humanized | Mesenchymal | Mossy | NTN1-UNC5C | NTN1 | UNC5C | 1.600964 |
| 34 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | GABA | Mesenchymal | NTN1-ACVR1C | NTN1 | ACVR1C | 1.589540 |
| 35 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Progenitor | NTN1-ACVR1B | NTN1 | ACVR1B | 1.496422 |
| 36 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Couturier2020_DevGBM | ZeiselDentateGyrus_humanized | Unassigned | Endo | NTN1-NOTCH3 | NTN1 | NOTCH3 | 1.492684 |
| 37 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Progenitor | NTN1-UNC5A | NTN1 | UNC5A | 1.468823 |
| 38 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Progenitor | NTN1-NOTCH2 | NTN1 | NOTCH2 | 1.456618 |
| 39 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Couturier2020_DevGBM | ZeiselDentateGyrus_humanized | Oligo | Endo | NTN1-NOTCH3 | NTN1 | NOTCH3 | 1.453180 |
| 40 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Oligo | NTN1-PTCH1 | NTN1 | PTCH1 | 1.403164 |
| 41 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Unassigned | NTN1-UNC5C | NTN1 | UNC5C | 1.401251 |
| 42 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Mesenchymal | NTN1-ACVR1B | NTN1 | ACVR1B | 1.380714 |
| 43 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Mesenchymal | NTN1-DCC | NTN1 | DCC | 1.349637 |
| 44 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Oligo | NTN1-NOTCH1 | NTN1 | NOTCH1 | 1.338490 |
| 45 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Progenitor | NTN1-PTCH1 | NTN1 | PTCH1 | 1.334017 |
| 46 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Mesenchymal | NTN1-ROBO2 | NTN1 | ROBO2 | 1.327435 |
| 47 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | NFOL | Mesenchymal | NTN1-ITGB4 | NTN1 | ITGB4 | 1.320814 |
| 48 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Progenitor | NTN1-ITGA6 | NTN1 | ITGA6 | 1.318048 |
| 49 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Progenitor | NTN1-NEO1 | NTN1 | NEO1 | 1.307126 |
| direction | source_cluster | target_cluster | score | |
|---|---|---|---|---|
| 0 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Mesenchymal | OLIG | 38.356154 |
| 1 | ZeiselDentateGyrus_humanized -> Couturier2020_... | OPC | Mesenchymal | 35.835365 |
| 2 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Astro | OLIG | 29.938549 |
| 3 | ZeiselDentateGyrus_humanized -> Couturier2020_... | OPC | Astro | 27.216096 |
| 4 | ZeiselDentateGyrus_humanized -> Couturier2020_... | OPC | Progenitor | 20.990887 |
| 5 | ZeiselDentateGyrus_humanized -> Couturier2020_... | OPC | Unassigned | 16.663185 |
| 6 | ZeiselDentateGyrus_humanized -> Couturier2020_... | OPC | Neuronal | 16.112459 |
| 7 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Unassigned | OLIG | 13.540250 |
| 8 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Oligo | OLIG | 13.181904 |
| 9 | ZeiselDentateGyrus_humanized -> Couturier2020_... | NFOL | Mesenchymal | 11.018728 |
| 10 | ZeiselDentateGyrus_humanized -> Couturier2020_... | OPC | Oligo | 9.375124 |
| 11 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Progenitor | OLIG | 9.109763 |
| 12 | ZeiselDentateGyrus_humanized -> Couturier2020_... | NFOL | Astro | 8.368459 |
| 13 | ZeiselDentateGyrus_humanized -> Couturier2020_... | GABA | Mesenchymal | 6.548810 |
| 14 | ZeiselDentateGyrus_humanized -> Couturier2020_... | NFOL | Progenitor | 6.454319 |
| 15 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Mesenchymal | Endo | 5.923558 |
| 16 | ZeiselDentateGyrus_humanized -> Couturier2020_... | NFOL | Unassigned | 5.123629 |
| 17 | ZeiselDentateGyrus_humanized -> Couturier2020_... | GABA | Astro | 4.973664 |
| 18 | ZeiselDentateGyrus_humanized -> Couturier2020_... | NFOL | Neuronal | 4.954291 |
| 19 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Astro | Endo | 4.623579 |
| 20 | ZeiselDentateGyrus_humanized -> Couturier2020_... | GABA | Progenitor | 3.836025 |
| 21 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Mesenchymal | Mossy | 3.460074 |
| 22 | ZeiselDentateGyrus_humanized -> Couturier2020_... | Endo | Mesenchymal | 3.166824 |
| 23 | ZeiselDentateGyrus_humanized -> Couturier2020_... | GABA | Unassigned | 3.045149 |
| 24 | ZeiselDentateGyrus_humanized -> Couturier2020_... | Peri/VLMC | Mesenchymal | 2.965054 |
| 25 | ZeiselDentateGyrus_humanized -> Couturier2020_... | GABA | Neuronal | 2.944506 |
| 26 | ZeiselDentateGyrus_humanized -> Couturier2020_... | NFOL | Oligo | 2.882681 |
| 27 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Astro | Mossy | 2.700729 |
| 28 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Mesenchymal | Peri/VLMC | 2.462077 |
| 29 | ZeiselDentateGyrus_humanized -> Couturier2020_... | Endo | Astro | 2.405127 |
[6]:
PosixPath('/mnt/e/Loal_Temp/Vicuna_Example/scCAMEL_VICUNA_updated_20260610/outputs/ntn1_couturier_zeisel_pypi047b1_tutorial/tables/ntn1_cluster_pair_score_summary.csv')

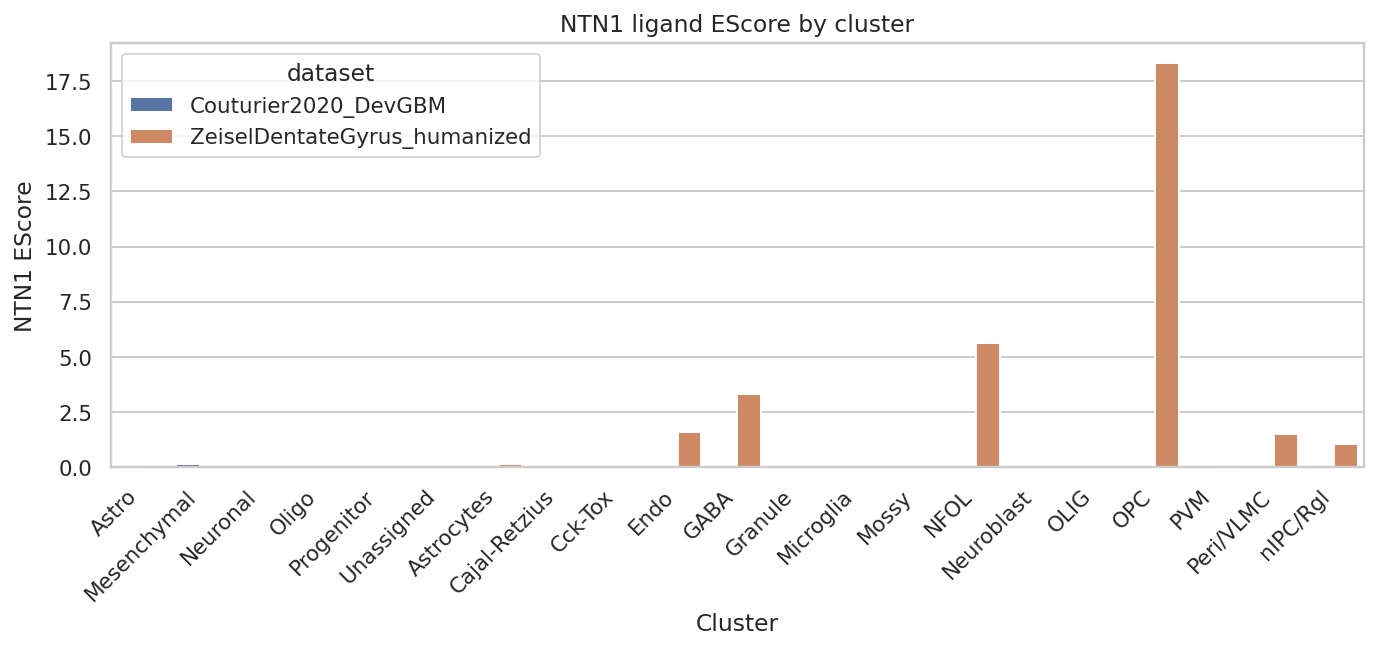

7. Plot NTN1 ligand activity
This bar plot compares the NTN1 ligand EScore across clusters in both datasets.
[7]:
# NOTE: Visualize NTN1 ligand EScore by cluster.
ntn1_plot_df, fig1_path = CamelVicuna.plot_ligand_escore_by_cluster(
ntn1_escore,
ligand=LIGAND,
filename="fig1_ntn1_ligand_escore_by_cluster.png",
fig_dir=FIG_DIR,
display_image=True,
)
display(ntn1_plot_df.head())
plt.show()
| cluster | dataset | NTN1_EScore | |
|---|---|---|---|
| 0 | Astro | Couturier2020_DevGBM | 0.129475 |
| 1 | Mesenchymal | Couturier2020_DevGBM | 0.165878 |
| 2 | Neuronal | Couturier2020_DevGBM | 0.005197 |
| 3 | Oligo | Couturier2020_DevGBM | 0.057008 |
| 4 | Progenitor | Couturier2020_DevGBM | 0.039397 |

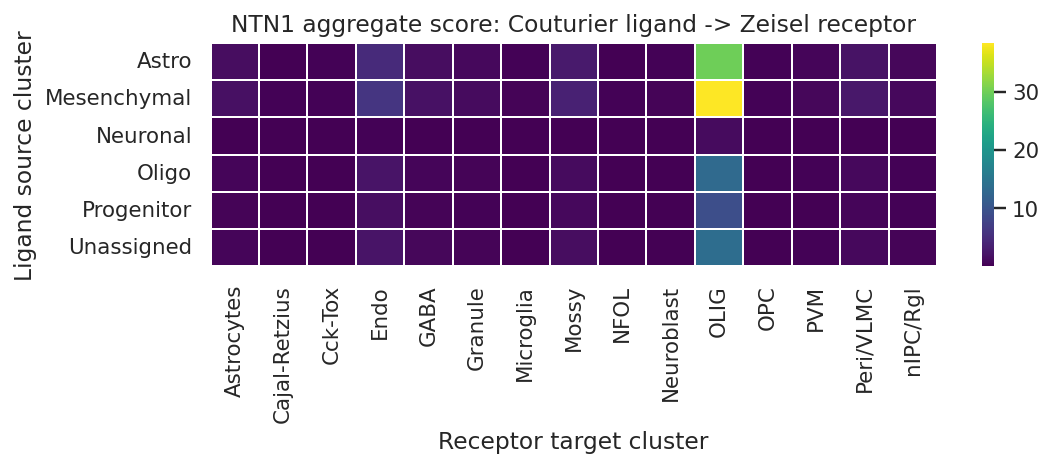

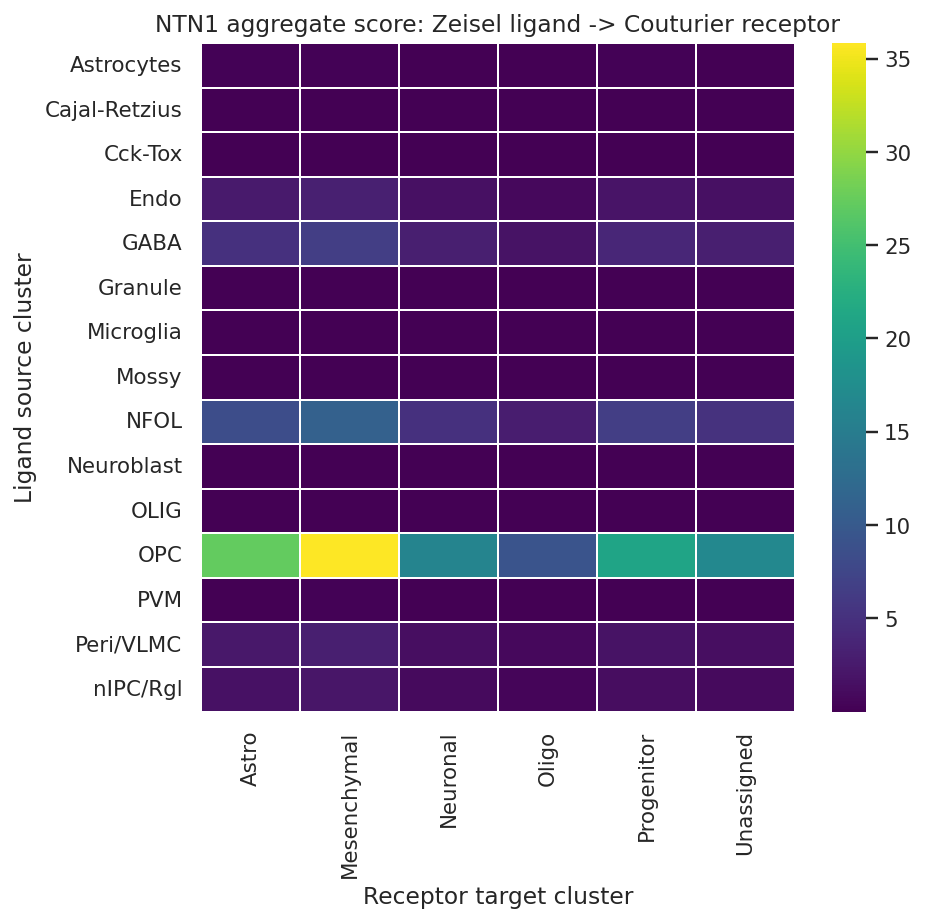

8. Plot cluster-pair communication heatmaps
These heatmaps aggregate all NTN1 receptor scores for each source and target cluster pair.
[8]:
# NOTE: Visualize aggregate cluster-pair communication in each direction.
main_to_zeisel_cluster_mat, fig2a_path = CamelVicuna.plot_cluster_heatmap(
cluster_pair_summary,
"Couturier2020_DevGBM -> ZeiselDentateGyrus_humanized",
"NTN1 aggregate score: Couturier ligand -> Zeisel receptor",
filename="fig2a_ntn1_couturier_to_zeisel_cluster_heatmap.png",
fig_dir=FIG_DIR,
display_image=True,
)
zeisel_to_main_cluster_mat, fig2b_path = CamelVicuna.plot_cluster_heatmap(
cluster_pair_summary,
"ZeiselDentateGyrus_humanized -> Couturier2020_DevGBM",
"NTN1 aggregate score: Zeisel ligand -> Couturier receptor",
filename="fig2b_ntn1_zeisel_to_couturier_cluster_heatmap.png",
fig_dir=FIG_DIR,
display_image=True,
)
CamelVicuna.save_table(main_to_zeisel_cluster_mat, TABLE_DIR / "ntn1_couturier_to_zeisel_cluster_heatmap_matrix.csv")
CamelVicuna.save_table(zeisel_to_main_cluster_mat, TABLE_DIR / "ntn1_zeisel_to_couturier_cluster_heatmap_matrix.csv")
plt.show()

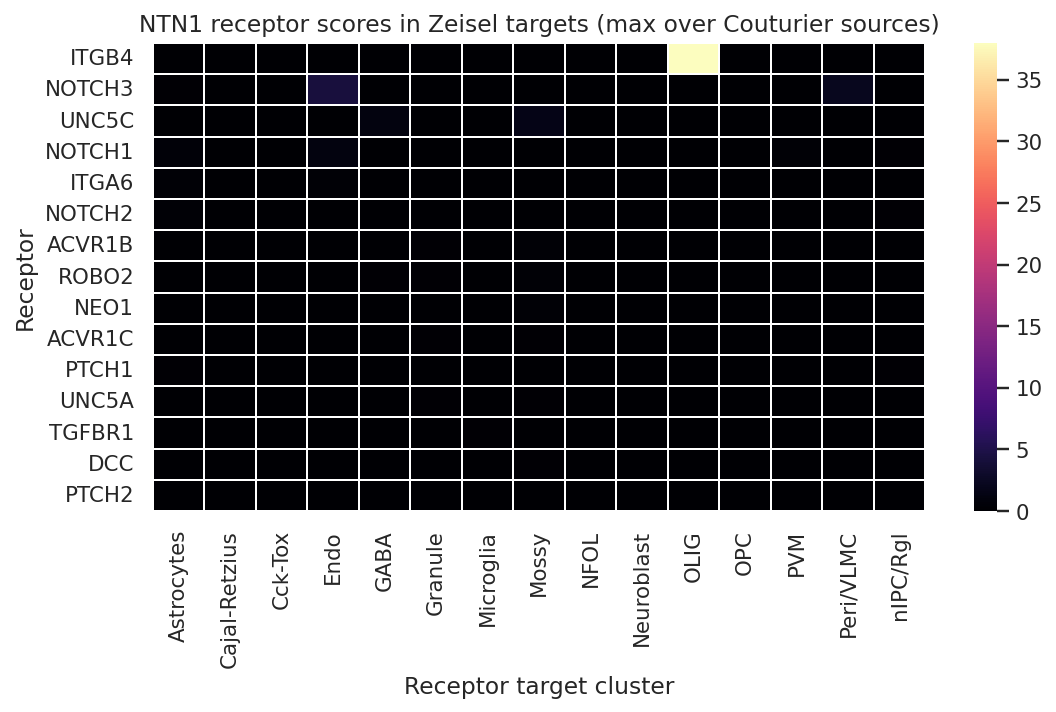

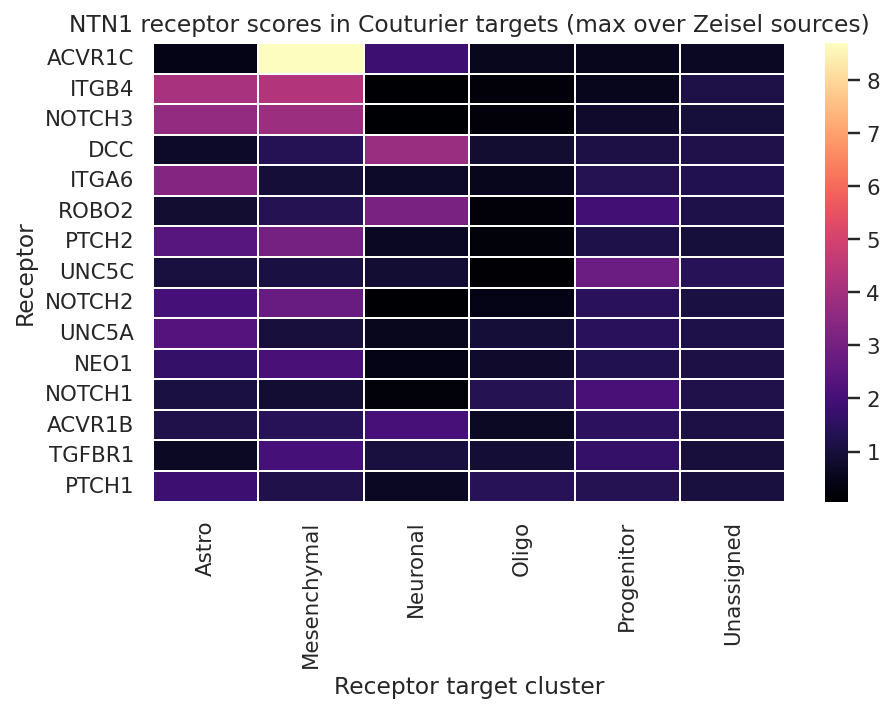

9. Plot receptor-by-target heatmaps
These heatmaps show the strongest NTN1 receptor score per target cluster.
[9]:
# NOTE: Visualize receptor-specific target cluster scores.
main_to_zeisel_receptor_mat, fig3a_path = CamelVicuna.plot_receptor_target_heatmap(
long_scores,
"Couturier2020_DevGBM -> ZeiselDentateGyrus_humanized",
"NTN1 receptor scores in Zeisel targets (max over Couturier sources)",
filename="fig3a_ntn1_receptor_scores_zeisel_targets.png",
fig_dir=FIG_DIR,
display_image=True,
)
zeisel_to_main_receptor_mat, fig3b_path = CamelVicuna.plot_receptor_target_heatmap(
long_scores,
"ZeiselDentateGyrus_humanized -> Couturier2020_DevGBM",
"NTN1 receptor scores in Couturier targets (max over Zeisel sources)",
filename="fig3b_ntn1_receptor_scores_couturier_targets.png",
fig_dir=FIG_DIR,
display_image=True,
)
CamelVicuna.save_table(main_to_zeisel_receptor_mat, TABLE_DIR / "ntn1_receptor_scores_zeisel_targets.csv")
CamelVicuna.save_table(zeisel_to_main_receptor_mat, TABLE_DIR / "ntn1_receptor_scores_couturier_targets.csv")
plt.show()

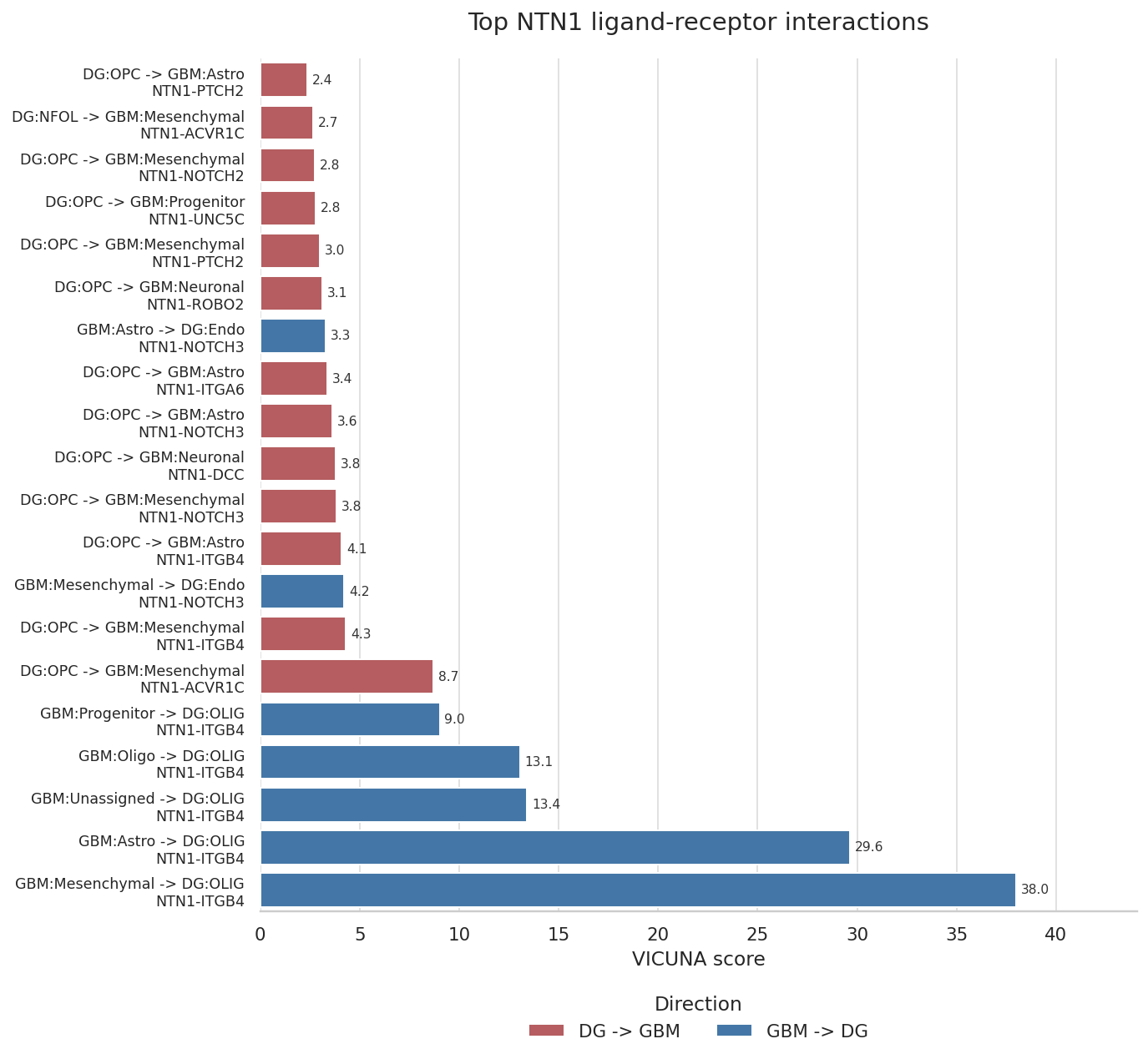

10. Plot top NTN1 ligand-receptor interactions
The readable bar plot wraps long labels and keeps the legend outside the plotting area.
[10]:
# NOTE: Visualize the top directional NTN1 interactions with readable wrapped labels.
top_plot, fig4_path = CamelVicuna.plot_top_directional_interactions(
top_interactions,
filename="fig4_top_ntn1_directional_interactions_readable.png",
fig_dir=FIG_DIR,
top_n=20,
title="Top NTN1 ligand-receptor interactions",
display_image=True,
)
CamelVicuna.save_table(top_plot, TABLE_DIR / "ntn1_top20_directional_scores_for_plot.csv")
plt.show()

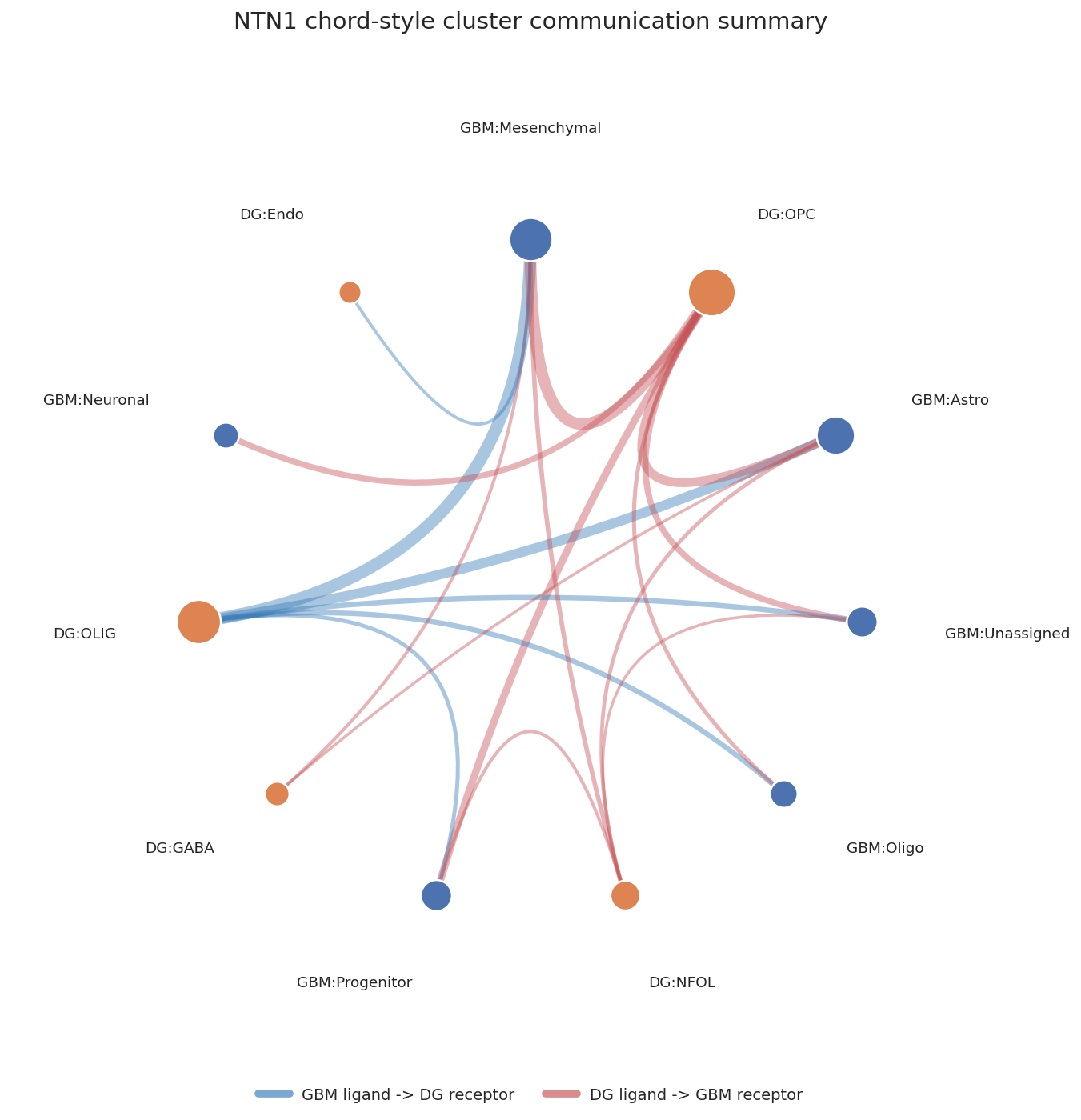

11. Chord-style cluster communication plot
This static chord-style summary shows the strongest cluster-pair communication paths while keeping labels and legend away from the circle.
[11]:
# NOTE: Draw the chord-style cluster communication summary.
chord_edges, chord_path = CamelVicuna.draw_chord_plot(
cluster_pair_summary,
filename="fig5_ntn1_chord_cluster_communication_readable.png",
fig_dir=FIG_DIR,
top_n=18,
title="NTN1 chord-style cluster communication summary",
display_image=True,
)
display(chord_edges)
CamelVicuna.save_table(chord_edges, TABLE_DIR / "ntn1_chord_edges_top_cluster_pairs_readable.csv")
plt.show()
| direction | direction_short | source_node | target_node | score | |
|---|---|---|---|---|---|
| 2 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | GBM -> DG | GBM:Mesenchymal | DG:OLIG | 38.356154 |
| 13 | ZeiselDentateGyrus_humanized -> Couturier2020_... | DG -> GBM | DG:OPC | GBM:Mesenchymal | 35.835365 |
| 0 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | GBM -> DG | GBM:Astro | DG:OLIG | 29.938549 |
| 12 | ZeiselDentateGyrus_humanized -> Couturier2020_... | DG -> GBM | DG:OPC | GBM:Astro | 27.216096 |
| 16 | ZeiselDentateGyrus_humanized -> Couturier2020_... | DG -> GBM | DG:OPC | GBM:Progenitor | 20.990887 |
| 17 | ZeiselDentateGyrus_humanized -> Couturier2020_... | DG -> GBM | DG:OPC | GBM:Unassigned | 16.663185 |
| 14 | ZeiselDentateGyrus_humanized -> Couturier2020_... | DG -> GBM | DG:OPC | GBM:Neuronal | 16.112459 |
| 5 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | GBM -> DG | GBM:Unassigned | DG:OLIG | 13.540250 |
| 3 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | GBM -> DG | GBM:Oligo | DG:OLIG | 13.181904 |
| 9 | ZeiselDentateGyrus_humanized -> Couturier2020_... | DG -> GBM | DG:NFOL | GBM:Mesenchymal | 11.018728 |
| 15 | ZeiselDentateGyrus_humanized -> Couturier2020_... | DG -> GBM | DG:OPC | GBM:Oligo | 9.375124 |
| 4 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | GBM -> DG | GBM:Progenitor | DG:OLIG | 9.109763 |
| 8 | ZeiselDentateGyrus_humanized -> Couturier2020_... | DG -> GBM | DG:NFOL | GBM:Astro | 8.368459 |
| 7 | ZeiselDentateGyrus_humanized -> Couturier2020_... | DG -> GBM | DG:GABA | GBM:Mesenchymal | 6.548810 |
| 10 | ZeiselDentateGyrus_humanized -> Couturier2020_... | DG -> GBM | DG:NFOL | GBM:Progenitor | 6.454319 |
| 1 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | GBM -> DG | GBM:Mesenchymal | DG:Endo | 5.923558 |
| 11 | ZeiselDentateGyrus_humanized -> Couturier2020_... | DG -> GBM | DG:NFOL | GBM:Unassigned | 5.123629 |
| 6 | ZeiselDentateGyrus_humanized -> Couturier2020_... | DG -> GBM | DG:GABA | GBM:Astro | 4.973664 |

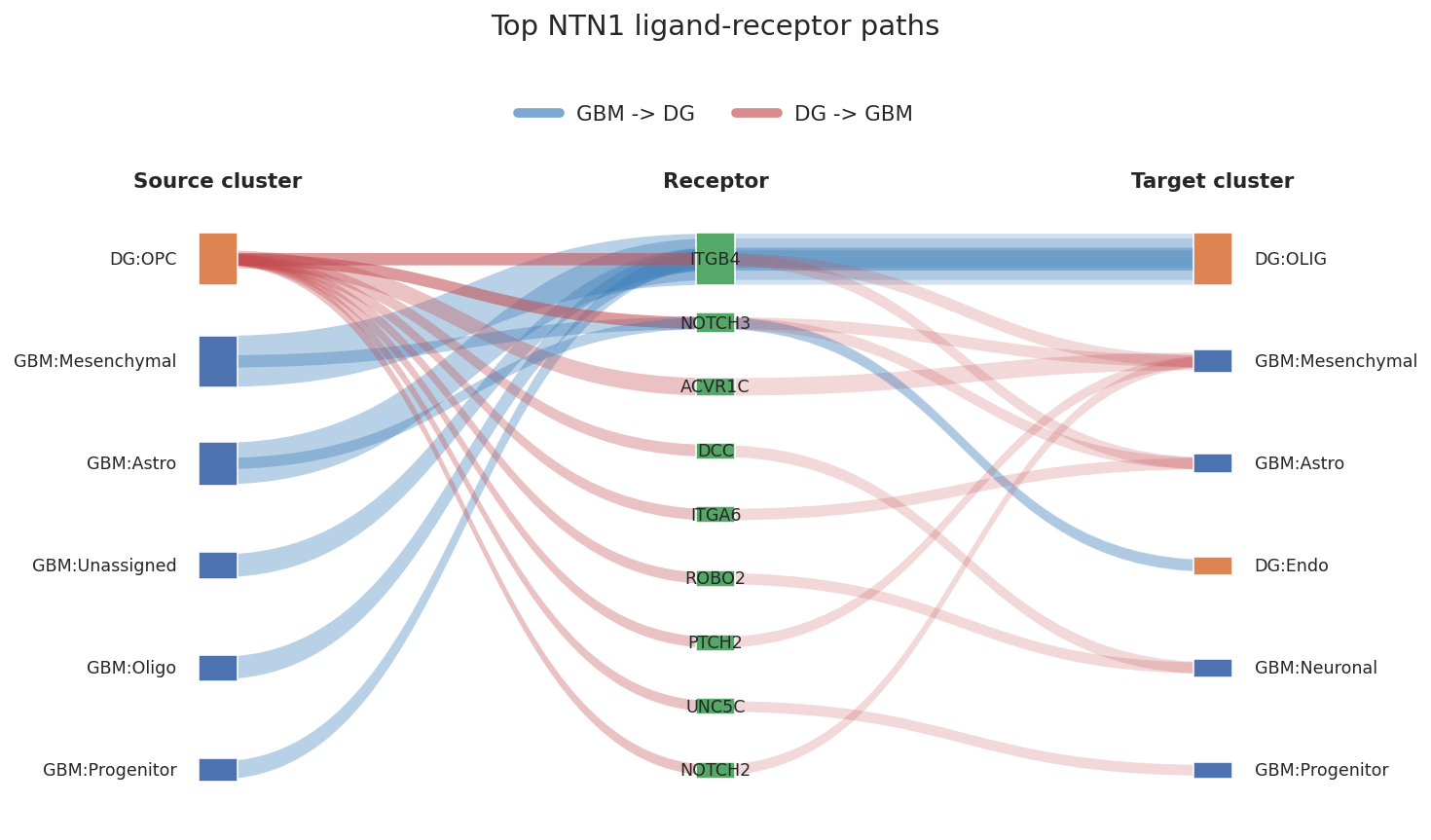

12. Sankey/alluvial plot for top paths
The Sankey-style plot follows top individual paths from source cluster to NTN1 receptor to target cluster.
[12]:
# NOTE: Draw the top individual NTN1 paths as source cluster -> receptor -> target cluster.
sankey_flows, sankey_path = CamelVicuna.draw_sankey_alluvial(
top_interactions,
filename="fig6_ntn1_sankey_top_paths_readable.png",
fig_dir=FIG_DIR,
top_n=18,
title="Top NTN1 ligand-receptor paths",
display_image=True,
)
display(sankey_flows)
CamelVicuna.save_table(sankey_flows, TABLE_DIR / "ntn1_sankey_top_flows_readable.csv")
plt.show()
| direction | source_dataset | target_dataset | source_cluster | target_cluster | pair | ligand | receptor | score | source_node | target_node | receptor_node | direction_short | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Couturier2020_DevGBM | ZeiselDentateGyrus_humanized | Mesenchymal | OLIG | NTN1-ITGB4 | NTN1 | ITGB4 | 37.977537 | GBM:Mesenchymal | DG:OLIG | ITGB4 | GBM -> DG |
| 1 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Couturier2020_DevGBM | ZeiselDentateGyrus_humanized | Astro | OLIG | NTN1-ITGB4 | NTN1 | ITGB4 | 29.643023 | GBM:Astro | DG:OLIG | ITGB4 | GBM -> DG |
| 2 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Couturier2020_DevGBM | ZeiselDentateGyrus_humanized | Unassigned | OLIG | NTN1-ITGB4 | NTN1 | ITGB4 | 13.406593 | GBM:Unassigned | DG:OLIG | ITGB4 | GBM -> DG |
| 3 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Couturier2020_DevGBM | ZeiselDentateGyrus_humanized | Oligo | OLIG | NTN1-ITGB4 | NTN1 | ITGB4 | 13.051785 | GBM:Oligo | DG:OLIG | ITGB4 | GBM -> DG |
| 4 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Couturier2020_DevGBM | ZeiselDentateGyrus_humanized | Progenitor | OLIG | NTN1-ITGB4 | NTN1 | ITGB4 | 9.019840 | GBM:Progenitor | DG:OLIG | ITGB4 | GBM -> DG |
| 5 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Mesenchymal | NTN1-ACVR1C | NTN1 | ACVR1C | 8.698030 | DG:OPC | GBM:Mesenchymal | ACVR1C | DG -> GBM |
| 6 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Mesenchymal | NTN1-ITGB4 | NTN1 | ITGB4 | 4.295583 | DG:OPC | GBM:Mesenchymal | ITGB4 | DG -> GBM |
| 7 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Couturier2020_DevGBM | ZeiselDentateGyrus_humanized | Mesenchymal | Endo | NTN1-NOTCH3 | NTN1 | NOTCH3 | 4.228401 | GBM:Mesenchymal | DG:Endo | NOTCH3 | GBM -> DG |
| 8 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Astro | NTN1-ITGB4 | NTN1 | ITGB4 | 4.090730 | DG:OPC | GBM:Astro | ITGB4 | DG -> GBM |
| 9 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Mesenchymal | NTN1-NOTCH3 | NTN1 | NOTCH3 | 3.827139 | DG:OPC | GBM:Mesenchymal | NOTCH3 | DG -> GBM |
| 10 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Neuronal | NTN1-DCC | NTN1 | DCC | 3.802583 | DG:OPC | GBM:Neuronal | DCC | DG -> GBM |
| 11 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Astro | NTN1-NOTCH3 | NTN1 | NOTCH3 | 3.636016 | DG:OPC | GBM:Astro | NOTCH3 | DG -> GBM |
| 12 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Astro | NTN1-ITGA6 | NTN1 | ITGA6 | 3.360210 | DG:OPC | GBM:Astro | ITGA6 | DG -> GBM |
| 13 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Couturier2020_DevGBM | ZeiselDentateGyrus_humanized | Astro | Endo | NTN1-NOTCH3 | NTN1 | NOTCH3 | 3.300440 | GBM:Astro | DG:Endo | NOTCH3 | GBM -> DG |
| 14 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Neuronal | NTN1-ROBO2 | NTN1 | ROBO2 | 3.124694 | DG:OPC | GBM:Neuronal | ROBO2 | DG -> GBM |
| 15 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Mesenchymal | NTN1-PTCH2 | NTN1 | PTCH2 | 3.011306 | DG:OPC | GBM:Mesenchymal | PTCH2 | DG -> GBM |
| 16 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Progenitor | NTN1-UNC5C | NTN1 | UNC5C | 2.804120 | DG:OPC | GBM:Progenitor | UNC5C | DG -> GBM |
| 17 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Mesenchymal | NTN1-NOTCH2 | NTN1 | NOTCH2 | 2.750143 | DG:OPC | GBM:Mesenchymal | NOTCH2 | DG -> GBM |
13. Review key results and generated files
The final cell lists the most important tables and figures created by the tutorial.
[13]:
# NOTE: Display final result tables and list saved tutorial artifacts.
print("Top 20 interactions")
display(top_interactions.head(20))
print("Available NTN1 receptor pairs")
display(ntn1_pairs)
print("Cluster-pair summary")
display(cluster_pair_summary.head(30))
print("\nTables:")
for path in sorted(TABLE_DIR.glob("*.csv")):
print(" -", path)
print("\nFigures:")
for path in sorted(FIG_DIR.glob("*.png")):
print(" -", path)
Top 20 interactions
| direction | source_dataset | target_dataset | source_cluster | target_cluster | pair | ligand | receptor | score | |
|---|---|---|---|---|---|---|---|---|---|
| 0 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Couturier2020_DevGBM | ZeiselDentateGyrus_humanized | Mesenchymal | OLIG | NTN1-ITGB4 | NTN1 | ITGB4 | 37.977537 |
| 1 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Couturier2020_DevGBM | ZeiselDentateGyrus_humanized | Astro | OLIG | NTN1-ITGB4 | NTN1 | ITGB4 | 29.643023 |
| 2 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Couturier2020_DevGBM | ZeiselDentateGyrus_humanized | Unassigned | OLIG | NTN1-ITGB4 | NTN1 | ITGB4 | 13.406593 |
| 3 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Couturier2020_DevGBM | ZeiselDentateGyrus_humanized | Oligo | OLIG | NTN1-ITGB4 | NTN1 | ITGB4 | 13.051785 |
| 4 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Couturier2020_DevGBM | ZeiselDentateGyrus_humanized | Progenitor | OLIG | NTN1-ITGB4 | NTN1 | ITGB4 | 9.019840 |
| 5 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Mesenchymal | NTN1-ACVR1C | NTN1 | ACVR1C | 8.698030 |
| 6 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Mesenchymal | NTN1-ITGB4 | NTN1 | ITGB4 | 4.295583 |
| 7 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Couturier2020_DevGBM | ZeiselDentateGyrus_humanized | Mesenchymal | Endo | NTN1-NOTCH3 | NTN1 | NOTCH3 | 4.228401 |
| 8 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Astro | NTN1-ITGB4 | NTN1 | ITGB4 | 4.090730 |
| 9 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Mesenchymal | NTN1-NOTCH3 | NTN1 | NOTCH3 | 3.827139 |
| 10 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Neuronal | NTN1-DCC | NTN1 | DCC | 3.802583 |
| 11 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Astro | NTN1-NOTCH3 | NTN1 | NOTCH3 | 3.636016 |
| 12 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Astro | NTN1-ITGA6 | NTN1 | ITGA6 | 3.360210 |
| 13 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Couturier2020_DevGBM | ZeiselDentateGyrus_humanized | Astro | Endo | NTN1-NOTCH3 | NTN1 | NOTCH3 | 3.300440 |
| 14 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Neuronal | NTN1-ROBO2 | NTN1 | ROBO2 | 3.124694 |
| 15 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Mesenchymal | NTN1-PTCH2 | NTN1 | PTCH2 | 3.011306 |
| 16 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Progenitor | NTN1-UNC5C | NTN1 | UNC5C | 2.804120 |
| 17 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Mesenchymal | NTN1-NOTCH2 | NTN1 | NOTCH2 | 2.750143 |
| 18 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | NFOL | Mesenchymal | NTN1-ACVR1C | NTN1 | ACVR1C | 2.674487 |
| 19 | ZeiselDentateGyrus_humanized -> Couturier2020_... | ZeiselDentateGyrus_humanized | Couturier2020_DevGBM | OPC | Astro | NTN1-PTCH2 | NTN1 | PTCH2 | 2.386175 |
Available NTN1 receptor pairs
| PPI | ligand_symbol | receptor_symbol | receptor_in_couturier | ligand_in_couturier | receptor_in_zeisel_humanized | ligand_in_zeisel_humanized | |
|---|---|---|---|---|---|---|---|
| NTN1-DCC | NTN1_DCC | NTN1 | DCC | True | True | True | True |
| NTN1-UNC5C | NTN1_UNC5C | NTN1 | UNC5C | True | True | True | True |
| NTN1-NEO1 | NTN1_NEO1 | NTN1 | NEO1 | True | True | True | True |
| NTN1-ITGB4 | NTN1_ITGB4 | NTN1 | ITGB4 | True | True | True | True |
| NTN1-ITGA6 | NTN1_ITGA6 | NTN1 | ITGA6 | True | True | True | True |
| NTN1-ACVR1B | NTN1_ACVR1B | NTN1 | ACVR1B | True | True | True | True |
| NTN1-TGFBR1 | NTN1_TGFBR1 | NTN1 | TGFBR1 | True | True | True | True |
| NTN1-NOTCH1 | NTN1_NOTCH1 | NTN1 | NOTCH1 | True | True | True | True |
| NTN1-NOTCH2 | NTN1_NOTCH2 | NTN1 | NOTCH2 | True | True | True | True |
| NTN1-PTCH1 | NTN1_PTCH1 | NTN1 | PTCH1 | True | True | True | True |
| NTN1-UNC5A | NTN1_UNC5A | NTN1 | UNC5A | True | True | True | True |
| NTN1-ACVR1C | NTN1_ACVR1C | NTN1 | ACVR1C | True | True | True | True |
| NTN1-ROBO2 | NTN1_ROBO2 | NTN1 | ROBO2 | True | True | True | True |
| NTN1-NOTCH3 | NTN1_NOTCH3 | NTN1 | NOTCH3 | True | True | True | True |
| NTN1-PTCH2 | NTN1_PTCH2 | NTN1 | PTCH2 | True | True | False | True |
Cluster-pair summary
| direction | source_cluster | target_cluster | score | |
|---|---|---|---|---|
| 0 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Mesenchymal | OLIG | 38.356154 |
| 1 | ZeiselDentateGyrus_humanized -> Couturier2020_... | OPC | Mesenchymal | 35.835365 |
| 2 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Astro | OLIG | 29.938549 |
| 3 | ZeiselDentateGyrus_humanized -> Couturier2020_... | OPC | Astro | 27.216096 |
| 4 | ZeiselDentateGyrus_humanized -> Couturier2020_... | OPC | Progenitor | 20.990887 |
| 5 | ZeiselDentateGyrus_humanized -> Couturier2020_... | OPC | Unassigned | 16.663185 |
| 6 | ZeiselDentateGyrus_humanized -> Couturier2020_... | OPC | Neuronal | 16.112459 |
| 7 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Unassigned | OLIG | 13.540250 |
| 8 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Oligo | OLIG | 13.181904 |
| 9 | ZeiselDentateGyrus_humanized -> Couturier2020_... | NFOL | Mesenchymal | 11.018728 |
| 10 | ZeiselDentateGyrus_humanized -> Couturier2020_... | OPC | Oligo | 9.375124 |
| 11 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Progenitor | OLIG | 9.109763 |
| 12 | ZeiselDentateGyrus_humanized -> Couturier2020_... | NFOL | Astro | 8.368459 |
| 13 | ZeiselDentateGyrus_humanized -> Couturier2020_... | GABA | Mesenchymal | 6.548810 |
| 14 | ZeiselDentateGyrus_humanized -> Couturier2020_... | NFOL | Progenitor | 6.454319 |
| 15 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Mesenchymal | Endo | 5.923558 |
| 16 | ZeiselDentateGyrus_humanized -> Couturier2020_... | NFOL | Unassigned | 5.123629 |
| 17 | ZeiselDentateGyrus_humanized -> Couturier2020_... | GABA | Astro | 4.973664 |
| 18 | ZeiselDentateGyrus_humanized -> Couturier2020_... | NFOL | Neuronal | 4.954291 |
| 19 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Astro | Endo | 4.623579 |
| 20 | ZeiselDentateGyrus_humanized -> Couturier2020_... | GABA | Progenitor | 3.836025 |
| 21 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Mesenchymal | Mossy | 3.460074 |
| 22 | ZeiselDentateGyrus_humanized -> Couturier2020_... | Endo | Mesenchymal | 3.166824 |
| 23 | ZeiselDentateGyrus_humanized -> Couturier2020_... | GABA | Unassigned | 3.045149 |
| 24 | ZeiselDentateGyrus_humanized -> Couturier2020_... | Peri/VLMC | Mesenchymal | 2.965054 |
| 25 | ZeiselDentateGyrus_humanized -> Couturier2020_... | GABA | Neuronal | 2.944506 |
| 26 | ZeiselDentateGyrus_humanized -> Couturier2020_... | NFOL | Oligo | 2.882681 |
| 27 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Astro | Mossy | 2.700729 |
| 28 | Couturier2020_DevGBM -> ZeiselDentateGyrus_hum... | Mesenchymal | Peri/VLMC | 2.462077 |
| 29 | ZeiselDentateGyrus_humanized -> Couturier2020_... | Endo | Astro | 2.405127 |
Tables:
- /mnt/e/Loal_Temp/Vicuna_Example/scCAMEL_VICUNA_updated_20260610/outputs/ntn1_couturier_zeisel_pypi047b1_tutorial/tables/cluster_counts.csv
- /mnt/e/Loal_Temp/Vicuna_Example/scCAMEL_VICUNA_updated_20260610/outputs/ntn1_couturier_zeisel_pypi047b1_tutorial/tables/couturier_escore_genes_by_cluster.csv
- /mnt/e/Loal_Temp/Vicuna_Example/scCAMEL_VICUNA_updated_20260610/outputs/ntn1_couturier_zeisel_pypi047b1_tutorial/tables/dataset_summary.csv
- /mnt/e/Loal_Temp/Vicuna_Example/scCAMEL_VICUNA_updated_20260610/outputs/ntn1_couturier_zeisel_pypi047b1_tutorial/tables/ntn1_all_directional_scores_long.csv
- /mnt/e/Loal_Temp/Vicuna_Example/scCAMEL_VICUNA_updated_20260610/outputs/ntn1_couturier_zeisel_pypi047b1_tutorial/tables/ntn1_chord_edges_top_cluster_pairs_readable.csv
- /mnt/e/Loal_Temp/Vicuna_Example/scCAMEL_VICUNA_updated_20260610/outputs/ntn1_couturier_zeisel_pypi047b1_tutorial/tables/ntn1_cluster_pair_score_summary.csv
- /mnt/e/Loal_Temp/Vicuna_Example/scCAMEL_VICUNA_updated_20260610/outputs/ntn1_couturier_zeisel_pypi047b1_tutorial/tables/ntn1_couturier_to_zeisel_cluster_heatmap_matrix.csv
- /mnt/e/Loal_Temp/Vicuna_Example/scCAMEL_VICUNA_updated_20260610/outputs/ntn1_couturier_zeisel_pypi047b1_tutorial/tables/ntn1_ligand_escore_by_cluster.csv
- /mnt/e/Loal_Temp/Vicuna_Example/scCAMEL_VICUNA_updated_20260610/outputs/ntn1_couturier_zeisel_pypi047b1_tutorial/tables/ntn1_ligand_receptor_pairs.csv
- /mnt/e/Loal_Temp/Vicuna_Example/scCAMEL_VICUNA_updated_20260610/outputs/ntn1_couturier_zeisel_pypi047b1_tutorial/tables/ntn1_receptor_scores_couturier_targets.csv
- /mnt/e/Loal_Temp/Vicuna_Example/scCAMEL_VICUNA_updated_20260610/outputs/ntn1_couturier_zeisel_pypi047b1_tutorial/tables/ntn1_receptor_scores_zeisel_targets.csv
- /mnt/e/Loal_Temp/Vicuna_Example/scCAMEL_VICUNA_updated_20260610/outputs/ntn1_couturier_zeisel_pypi047b1_tutorial/tables/ntn1_sankey_top_flows_readable.csv
- /mnt/e/Loal_Temp/Vicuna_Example/scCAMEL_VICUNA_updated_20260610/outputs/ntn1_couturier_zeisel_pypi047b1_tutorial/tables/ntn1_scores_couturier_ligand_to_zeisel_receptor.csv
- /mnt/e/Loal_Temp/Vicuna_Example/scCAMEL_VICUNA_updated_20260610/outputs/ntn1_couturier_zeisel_pypi047b1_tutorial/tables/ntn1_scores_zeisel_ligand_to_couturier_receptor.csv
- /mnt/e/Loal_Temp/Vicuna_Example/scCAMEL_VICUNA_updated_20260610/outputs/ntn1_couturier_zeisel_pypi047b1_tutorial/tables/ntn1_top20_directional_scores_for_plot.csv
- /mnt/e/Loal_Temp/Vicuna_Example/scCAMEL_VICUNA_updated_20260610/outputs/ntn1_couturier_zeisel_pypi047b1_tutorial/tables/ntn1_top50_directional_scores.csv
- /mnt/e/Loal_Temp/Vicuna_Example/scCAMEL_VICUNA_updated_20260610/outputs/ntn1_couturier_zeisel_pypi047b1_tutorial/tables/ntn1_zeisel_to_couturier_cluster_heatmap_matrix.csv
- /mnt/e/Loal_Temp/Vicuna_Example/scCAMEL_VICUNA_updated_20260610/outputs/ntn1_couturier_zeisel_pypi047b1_tutorial/tables/zeisel_humanized_escore_genes_by_cluster.csv
Figures:
- /mnt/e/Loal_Temp/Vicuna_Example/scCAMEL_VICUNA_updated_20260610/outputs/ntn1_couturier_zeisel_pypi047b1_tutorial/figures/fig1_ntn1_ligand_escore_by_cluster.png
- /mnt/e/Loal_Temp/Vicuna_Example/scCAMEL_VICUNA_updated_20260610/outputs/ntn1_couturier_zeisel_pypi047b1_tutorial/figures/fig2a_ntn1_couturier_to_zeisel_cluster_heatmap.png
- /mnt/e/Loal_Temp/Vicuna_Example/scCAMEL_VICUNA_updated_20260610/outputs/ntn1_couturier_zeisel_pypi047b1_tutorial/figures/fig2b_ntn1_zeisel_to_couturier_cluster_heatmap.png
- /mnt/e/Loal_Temp/Vicuna_Example/scCAMEL_VICUNA_updated_20260610/outputs/ntn1_couturier_zeisel_pypi047b1_tutorial/figures/fig3a_ntn1_receptor_scores_zeisel_targets.png
- /mnt/e/Loal_Temp/Vicuna_Example/scCAMEL_VICUNA_updated_20260610/outputs/ntn1_couturier_zeisel_pypi047b1_tutorial/figures/fig3b_ntn1_receptor_scores_couturier_targets.png
- /mnt/e/Loal_Temp/Vicuna_Example/scCAMEL_VICUNA_updated_20260610/outputs/ntn1_couturier_zeisel_pypi047b1_tutorial/figures/fig4_top_ntn1_directional_interactions_readable.png
- /mnt/e/Loal_Temp/Vicuna_Example/scCAMEL_VICUNA_updated_20260610/outputs/ntn1_couturier_zeisel_pypi047b1_tutorial/figures/fig5_ntn1_chord_cluster_communication_readable.png
- /mnt/e/Loal_Temp/Vicuna_Example/scCAMEL_VICUNA_updated_20260610/outputs/ntn1_couturier_zeisel_pypi047b1_tutorial/figures/fig6_ntn1_sankey_top_paths_readable.png
